90136-2204
Header 2.54mm, single row,RA shrouded,4w | Molex Incorporated 90136-2204
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 90136-2204 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

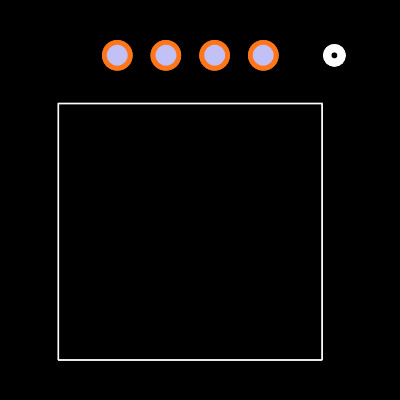

Footprint
No web preview
This Footprint is Available for

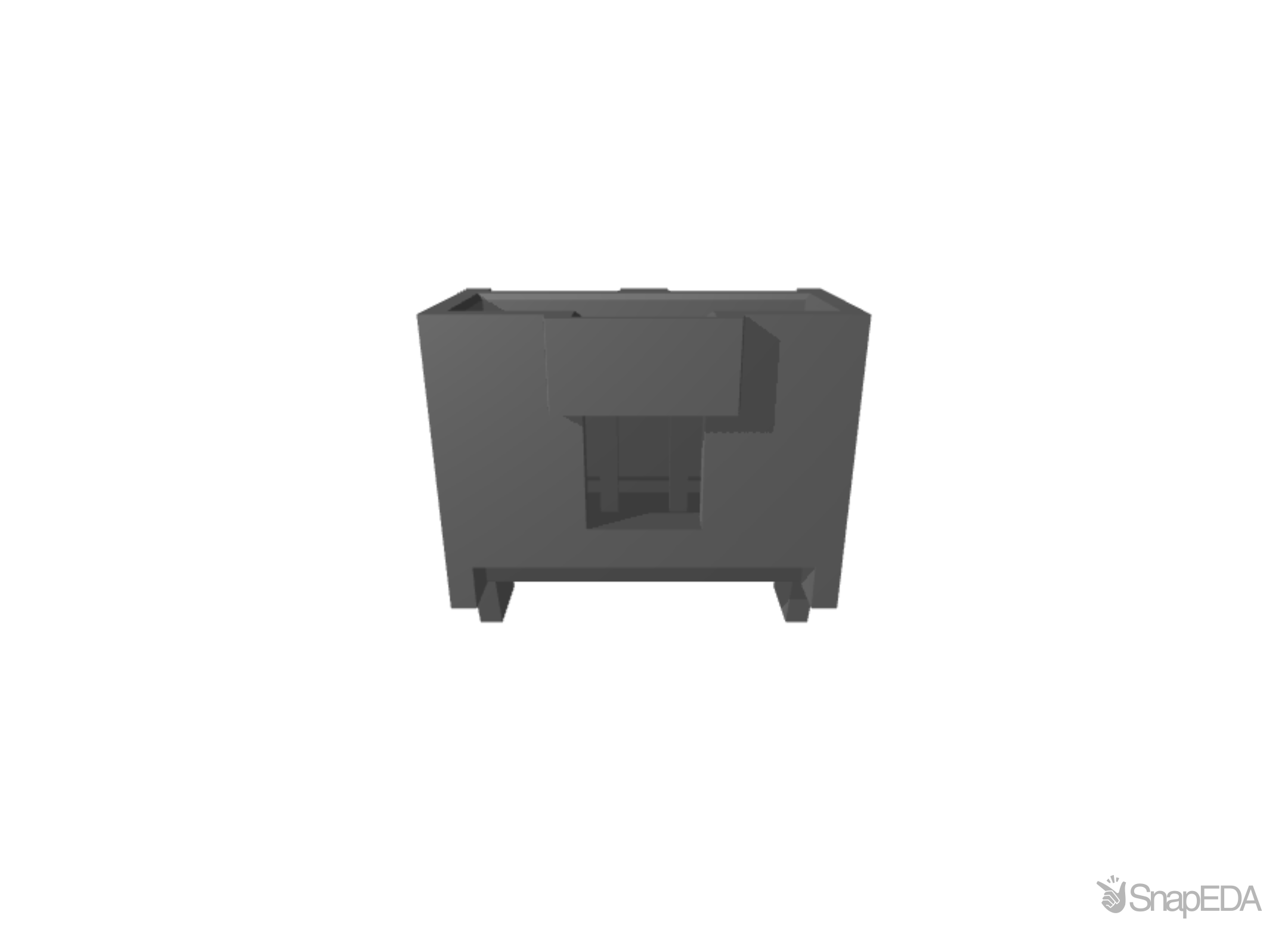

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 90136-2204
| Part Name | 90136-2204 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded/Unshrouded | Shrouded |
| Current Rating (A) | 3.0 (A) |
| Contact Plating | Gold |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 350.0 V |
| Series | C-Grid III |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Series Number | 90136 |
| Pitch | 2.54 (mm) |
| Number Of Contacts | 4 |
| Contact Material | Brass |
No issues have been reported for the 90136-2204
