90814-0806
PICOFLEX Series, Surface Mount IDC Connector Plug, 6 Way, 1 Row, 1.27mm Pitch | Molex Incorporated 90814-0806
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 90814-0806 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

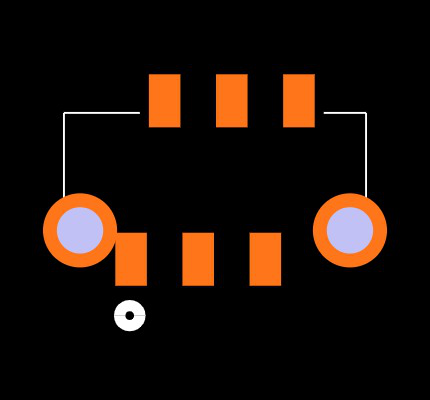

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 90814-0806
| Part Name | 90814-0806 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | Picoflex |
| Current Rating (A) | 1.2 (A) |
| Minimum Operating Temperature | -40.0 (°C) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 250.0 V dc, 250.0 V ac |
| Gender | Male |
| Body Orientation | Straight |
| Termination Method | IDC |
| Housing Material | Nylon |
| Number Of Rows | 1 |
| Contact Plating | Tin over Nickel |
| Pitch | 1.27 (mm) |
| Number Of Contacts | 6 |
| Maximum Operating Temperature | 105.0 (°C) |
| Contact Material | Brass |
Inventory for the 90814-0806 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,521
|
|
Visit Site | |
|
★ Featured
|
455
|
1,005 x $0.35
|
Visit Site | |
| Onlinecomponents |
92
|
|
Visit Site | |
| Verical |
138,773
|
500 x $0.40
|
Visit Site |
No issues have been reported for the 90814-0806
