913X

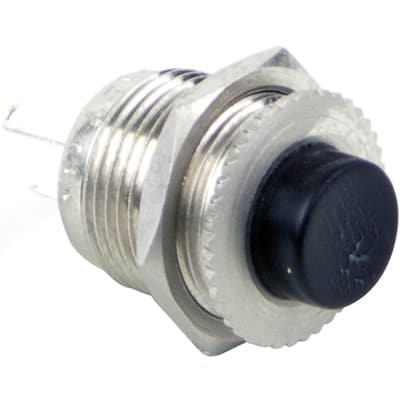

Switch BUTTON FRONT PANEL MOUTING BLACK, 900 Series | Switchcraft 913X
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 913X by SWITCHCRAFT and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

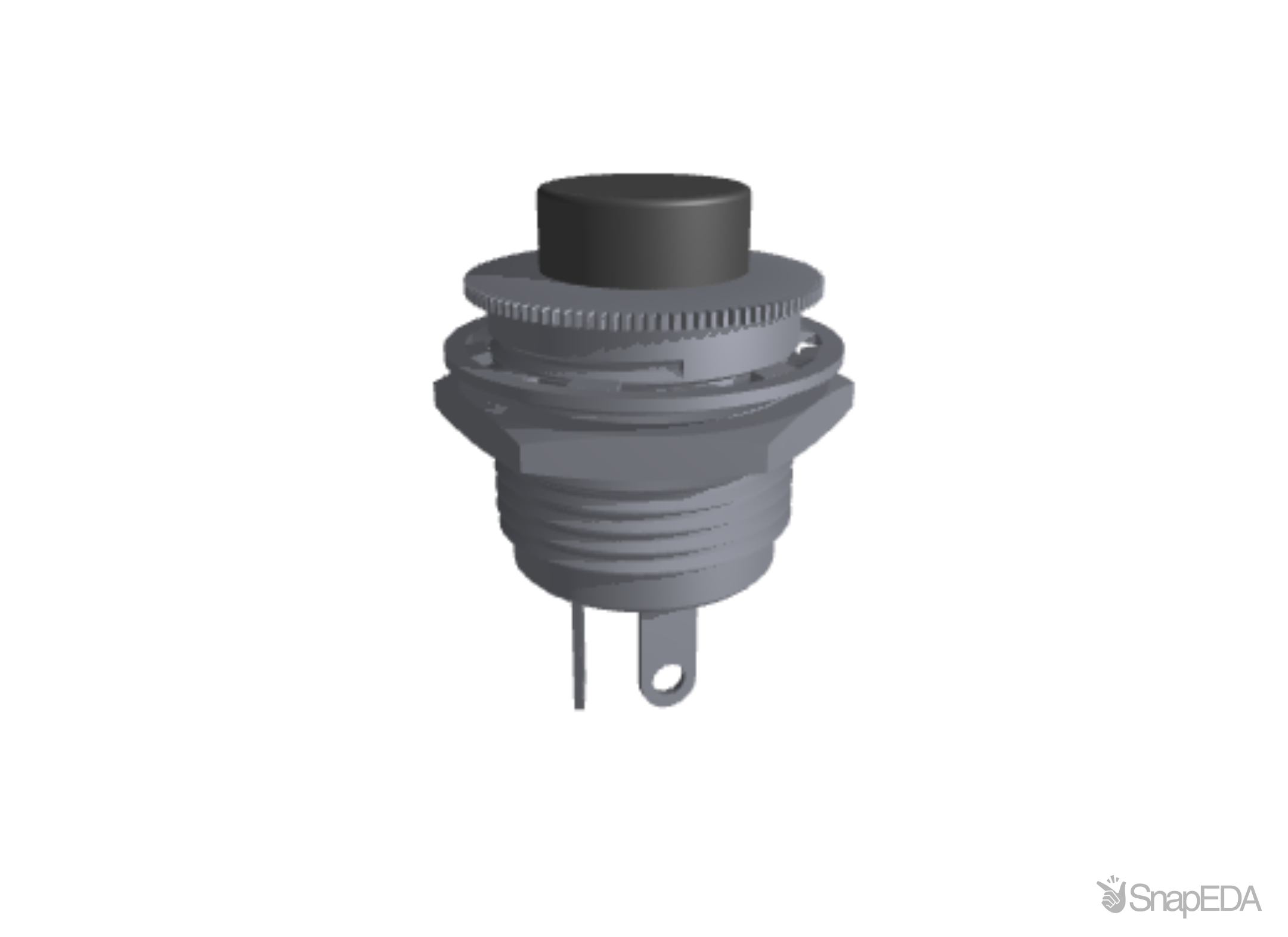

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 913X
| Part Name | 913X |
| Manufacturer | Switchcraft Inc. |
| Category | Switches |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Illuminated | No |
| Mounting Type | Panel Mount |
| Contact Current Rating (A) | 250 mA |
| Push Button Style | Round |
| Contact Configuration | SPDT |
| Push Button Colour | Black |
| Manufacturer Part No. | 913X |
| Switch Operation | Momentary |
| Terminal Type | Solder |
| Contact Material | Copper Alloy |
Inventory for the 913X by SWITCHCRAFT from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Carlton-Bates |
|
1 x $6.69
|
Visit Site | |
| Farnell UK |
2,086
|
|
Visit Site | |
| Heilind Americas |
174
|
|
Visit Site | |
| Newark |
2,086
|
|
Visit Site | |
| RS Americas |
139
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TTI Americas |
600
|
|
Visit Site | |
| element14 Singapore |
2,086
|
|
Visit Site |
No issues have been reported for the 913X
If you experienced any issues with this part, please report it.
