91520-1

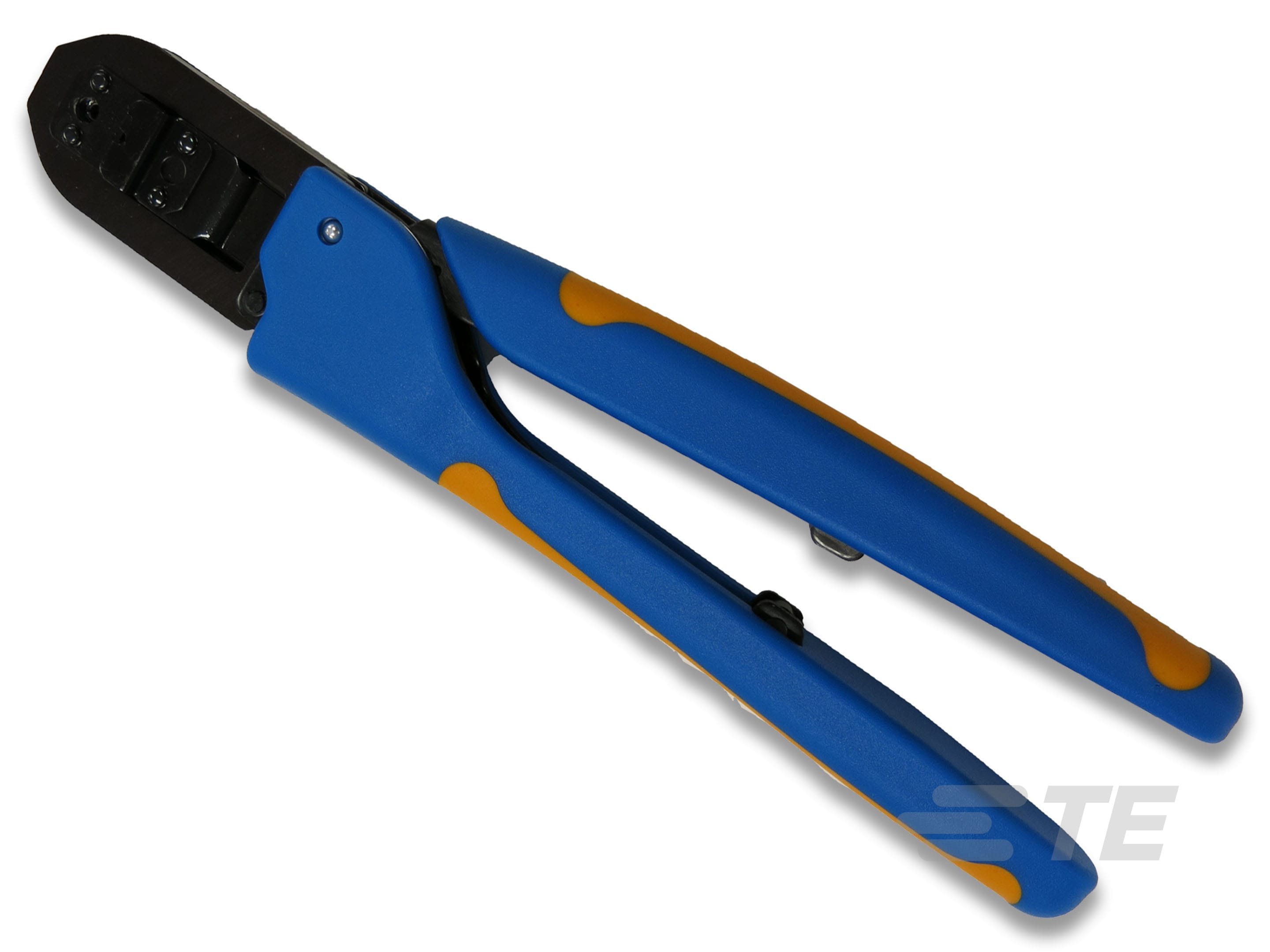

Crimper, SAHT Ratchet, 26-28AWG, D-Sub, AMPLIMITE HD-22 Contacts, CERTI-CRIMP II | TE Connectivity 91520-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 91520-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 91520-1
| Part Name | 91520-1 |
| Manufacturer | TE Connectivity |
| Category | Tools & Hardware |
| Tool Grade | Premium Crimp Tooling |
| Tool Type | CERTI-CRIMP II, Straight Action Hand Tool |
| Ratchet Configuration | Not Releasable, Not Adjustable |
| Certification | Yes – Certificate Included |
| Power Type | Manual |
| TE Internal Number | 91520-1 |
| Die Sets Type | Fixed In Tool |
| Crimp Form-Wire Barrel Type | Open Barrel - F Crimp |
| RoHS | Not Applicable |
| Specification Type | TE Product Specification (114-) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | CERTI-CRIMP II |
| Wire Size (Mm²) | 0.08 → 0.3 (mm²) |
| Wire Size (Awg) | 28 → 26 (AWG) |
| Ratcheting | Yes |
| For Use With | AMPLIMITE HD-22 Connector Contacts |
| Operation | Hand |
| Product Type | Crimp Tool |
