917485-2

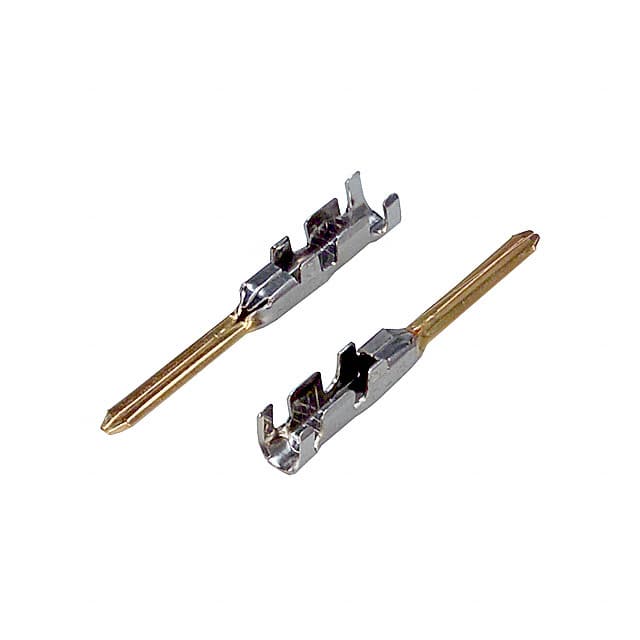

Contact male crimp 16-14AWG Au 2L D-3 | TE Connectivity 917485-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 917485-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the 917485-2
Part Name | 917485-2 |
Manufacturer | TE Connectivity |
Category | Connectors |
Underplate Material Thickness | 1.3 |
Contact Mating Area Plating Thickness | .38 |
Centerline (Pitch) | 5.08 |
Operating Temperature Range | -55 – 105 |
Circuit Application | Power & Signal |
Contact Classification | Signal |
Overall Length | 1.01 |
Packaging Method | Reel |
Packaging Quantity | 3000 |
Wire Size | 1.23 – 2.27 |
Wire/Cable Type | Discrete Wire |
Operating Voltage (V) | 600 |
Contact Mating Area Plating Material | Gold |
For Use With | Receptacle (Socket) Contact |
Connector & Contact Terminates To | Wire & Cable |
Contact Retention Type | Locking Lance |
Connector System | Wire-to-Wire |
端子の下地めっきの材料 | Nickel |
Glow Wire Rating | Standard Part - Not Glow Wire |
Wire Range Mark | 2L |
Barrel Type | Open Barrel |
TE Internal Number | 917485-2 |
Termination Method to Wire & Cable | Crimp |
Contact Current Rating (Max) (A) | 15 |
Contact Retention | With |
Contact Underplating Material | Nickel |
Contact Type | Tab |
Accepts Wire Insulation Diameter Range | 2.2 – 2.8 |
Contact Base Material | Copper Alloy |
Connector Mounting Type | Board Mount |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
