917688-9
Conn Housing PL 4 POS 2.5mm Crimp ST Cable Mount Bag
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 917688-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

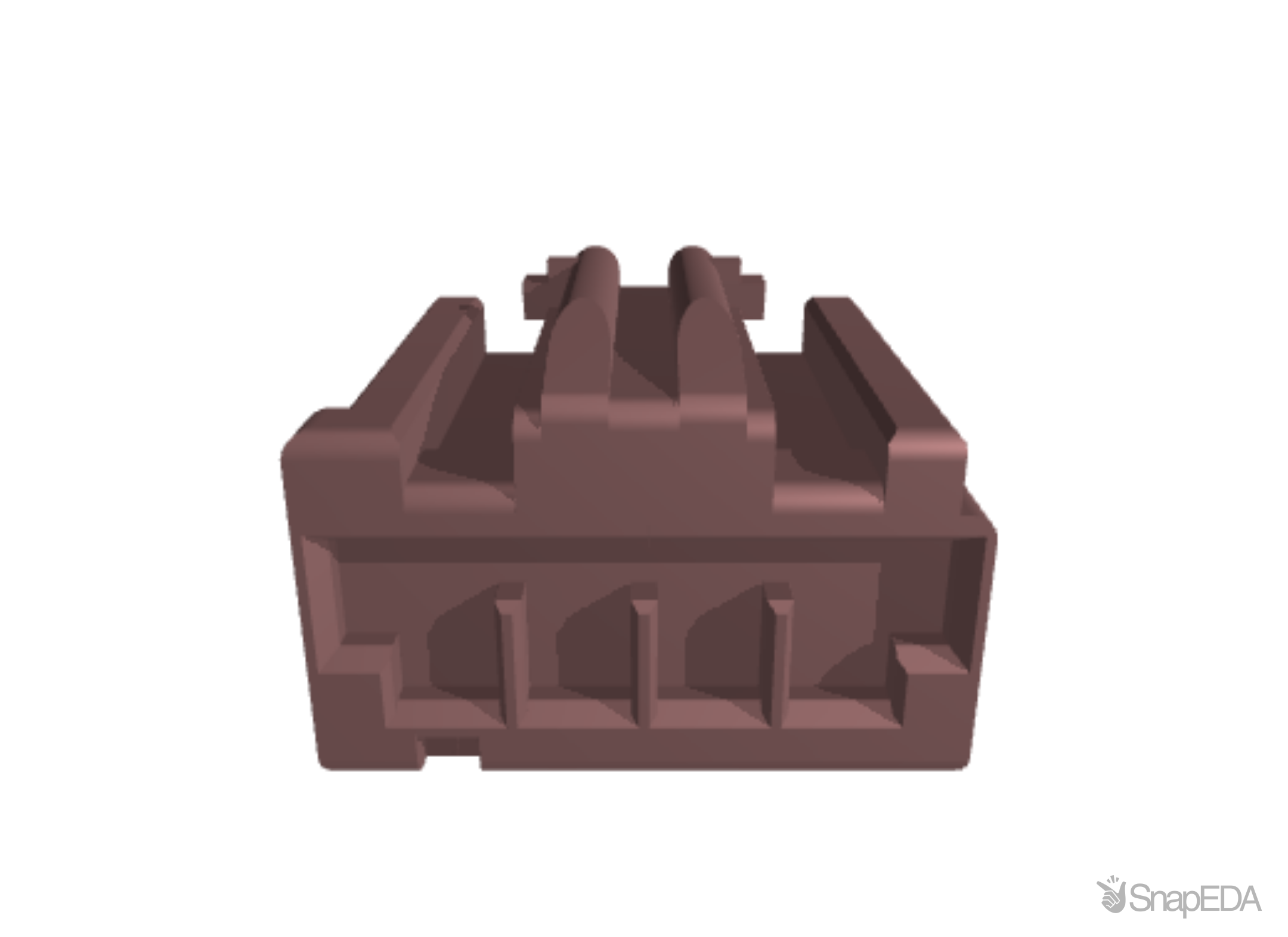

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 917688-9
| Part Name | 917688-9 |
| Manufacturer | TE Connectivity / AMP |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 2.5 |
| Circuit Application | Power & Signal |
| UL Flammability Rating | UL 94V-0 |
| Mating Retention | With |
| Operating Voltage (V) | 250 VDC |
| Connector Style | Plug |
| Number of Positions | 4 |
| Connector System | Wire-to-Wire |
| TE Internal Number | 917688-9 |
| Connector & Contact Terminates To | Wire & Cable |
| Termination Method to Wire & Cable | Crimp |
| Number of Rows | 1 |
| Housing Color | Black |
| Strain Relief | Without |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Contact Transmits (Typical) | Signal (Data) |
| Operating Temperature Range | -22 – 221 |
| Packaging Method | Bag/Box |
| Connector Type | Housing |
| Packaging Quantity | 400 |
| Contact Layout | Inline |
| Length | 12.5 |
| Mating Alignment | With |
| Housing Material | Nylon 6/6 |
| Sealable | No |
| Mating Retention Type | Latch |
| Height | 11 |
| Contact Current Rating (Max) (A) | 3 |
| Contact Type | Socket |
| Glow Wire Rating | Glow Wire |
| Wire Size | 20 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
