917992-7
Conn Housing PL 26 POS Crimp ST Cable Mount Automotive Bag
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 917992-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

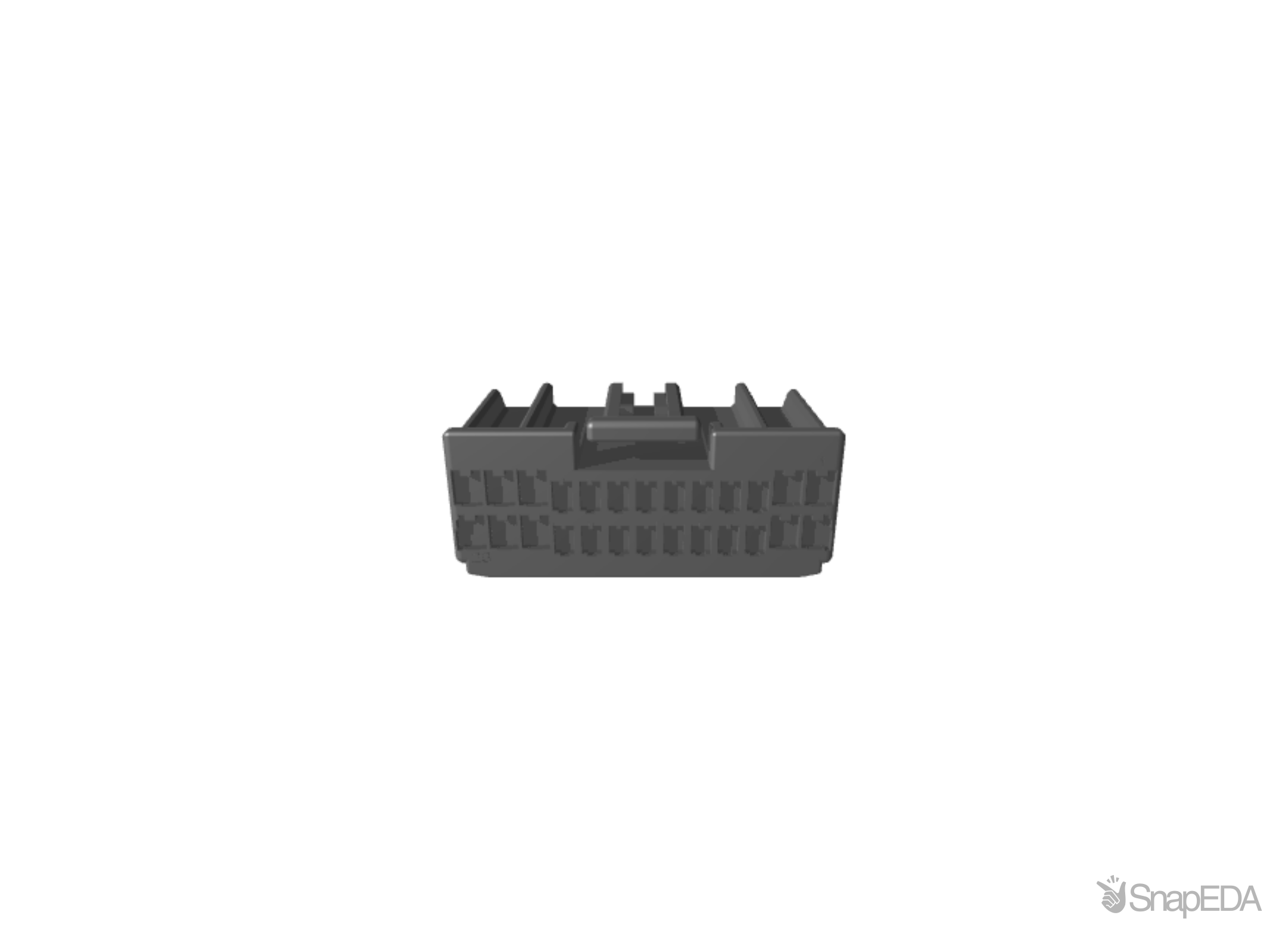

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 917992-7
| Part Name | 917992-7 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 3 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| UL Flammability Rating | UL 94-HB |
| Width | 42.2 |
| Operating Voltage (V) | 12 |
| Connector Style | Housing for female terminals |
| Connector Position Assurance Capable | No |
| Number of Positions | 26 |
| Hybrid Connector | Yes |
| TE Internal Number | 917992-7 |
| Connector System | Wire-to-Device |
| Number of Rows | 2 |
| Sealable | No |
| Terminal Position Assurance | Yes |
| Nominal Voltage Architecture (V) | 12 |
| Polarized | Yes |
| Operating Temperature Range | -22 – 221 |
| Packaging Method | Bag |
| Serviceable | Yes |
| Length | 21 |
| Cable Exit Angle | 180° |
| Packaging Quantity | 25 |
| RoHS | True |
| Mating Tab Width | .039 |
| Strain Relief | No |
| Color | Yellow |
| Body Material | PBT |
| Height | .724 |
| Row-to-Row Spacing | 5.2 |
| Primary Locking Feature | Integrated in Housing |
| Life Cycle Status | New at Mouser |
