925595-1
Contact SKT Crimp ST Cable Mount 13-17AWG Reel Automotive
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 925595-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

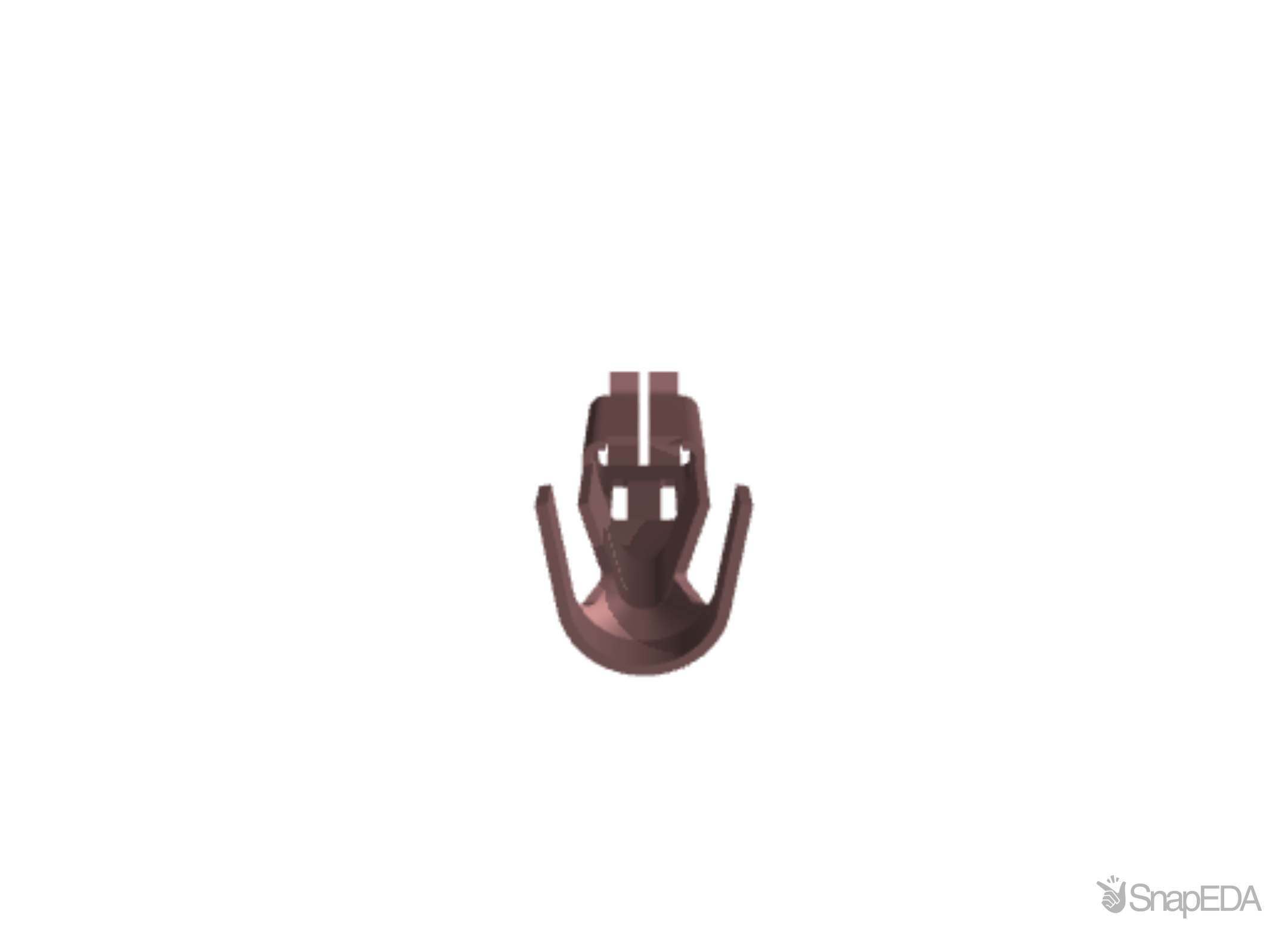

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 925595-1
| Part Name | 925595-1 |
| Manufacturer | TE Connectivity |
| Wire Size | 1 – 2.5 |
| Wire Type | Copper |
| Operating Temperature Range | -40 – 110 |
| Terminal & Splice Type | Receptacle |
| Packaging Method | Reel |
| Mating Tab Thickness | .8 |
| Wire Insulation Diameter | 2.4 – 3.7 |
| TE Internal Number | 925595-1 |
| Wire Size Search | 17 |
| Crimp Type | F-Crimp |
| Agency/Standard | IEC 664/664A (DIN VDE 0110) |
| Interface Plating | Tin (Sn) |
| Terminal Transmits | 0 – 24 A (Low Power) |
| Primary Locking Feature | Locking Lance |
| Packaging Quantity | 3750 |
| Termination Method | Crimp |
| Receptacle Style | 180° |
| Sealable | No |
| Typical Current Rating (A) | 20 |
| Mating Tab Width | 2.8 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
