926902-1
Contact PIN Crimp ST Cable Mount 13-15AWG Box
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 926902-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

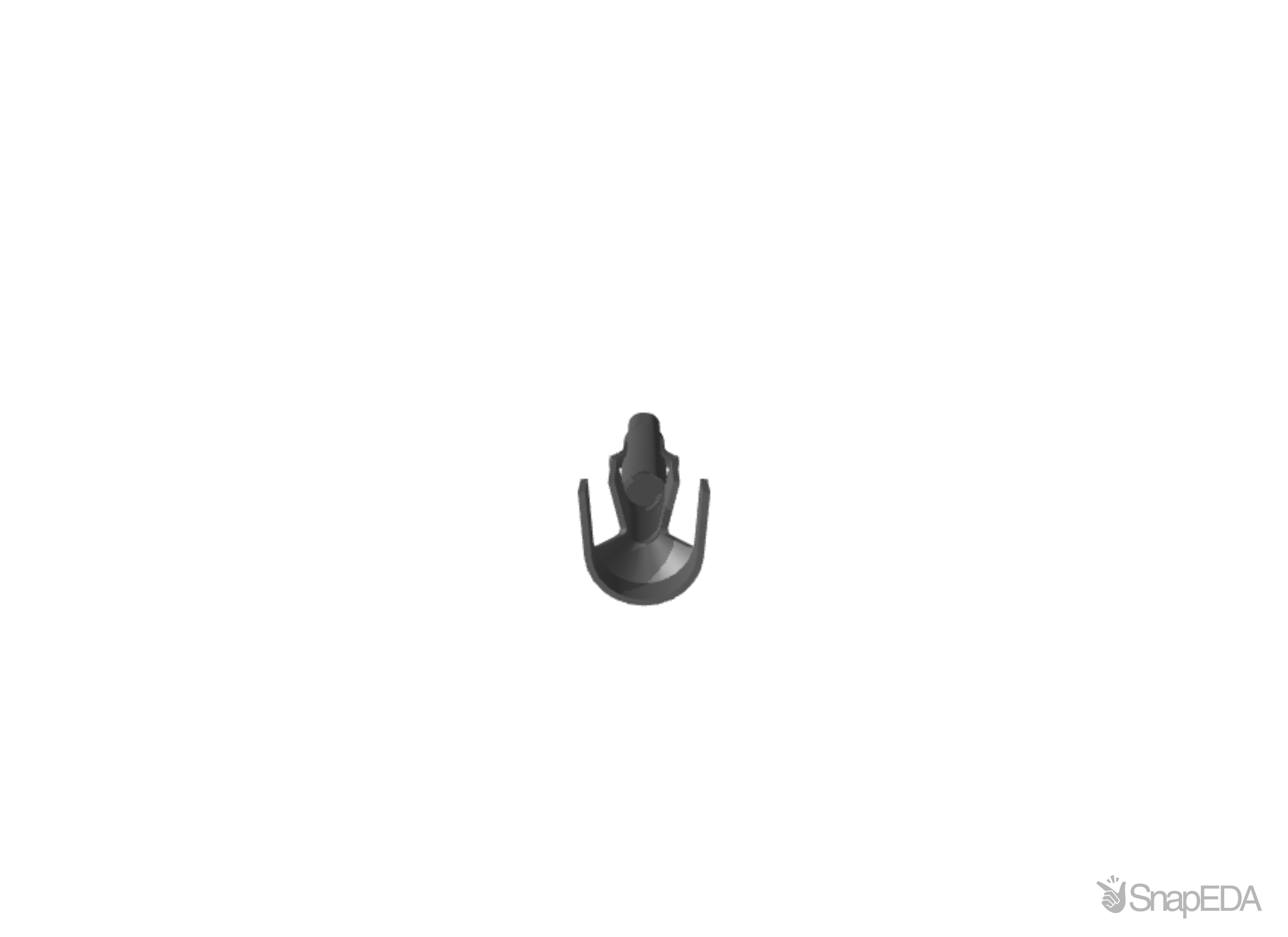

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 926902-1
| Part Name | 926902-1 |
| Manufacturer | TE Connectivity |
| Contact Retention Within Housing | With |
| Wire Type | Stranded |
| Circuit Application | Power |
| Wire/Cable Type | Discrete Wire |
| Operating Voltage (V) | 600 |
| Connector & Contact Terminates To | Wire & Cable |
| Wire Contact Termination Area Plating Material | Pre-Tin |
| Contact Design | Split |
| VDE Tested | Yes |
| Contact Current Rating (Max) (A) | 17 |
| TE Internal Number | 926902-1 |
| UL Rating | Recognized |
| Connector System | Wire-to-Wire |
| Contact Orientation | Straight |
| Contact Base Material | Brass |
| Wire Insulation Support | Without |
| UL File Number | E28476 |
| Operating Temperature Range | -67 – 257 |
| For Multiple Crimp | No |
| Packaging Method | Box |
| Packaging Quantity | 1000 |
| Agency/Standard | CSA |
| Contact Termination Area Plating Material | Pre-Tin |
| Accepts Wire Insulation Diameter Range | .13 – .2 |
| Contact Mating Area Plating Material | Pre-Tin |
| CSA Rating | Certified |
| RoHS | True |
| Product Type | Contact |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| CSA File Number | LR 7189 |
| Contact Retention Type Within Housing | Locking Lance |
| Termination Type | Crimp |
| Mating Pin Diameter | 2.13 |
| Contact Type | Pin |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Wire Size | 16 – 13 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
