929505-4
HOUSING, 2.8MM, 10WAY; Connector Type: Wire-to-Board; Connector Type: Wire-to-Board; Gender: Male; Lead Spacing: 5mm
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 929505-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

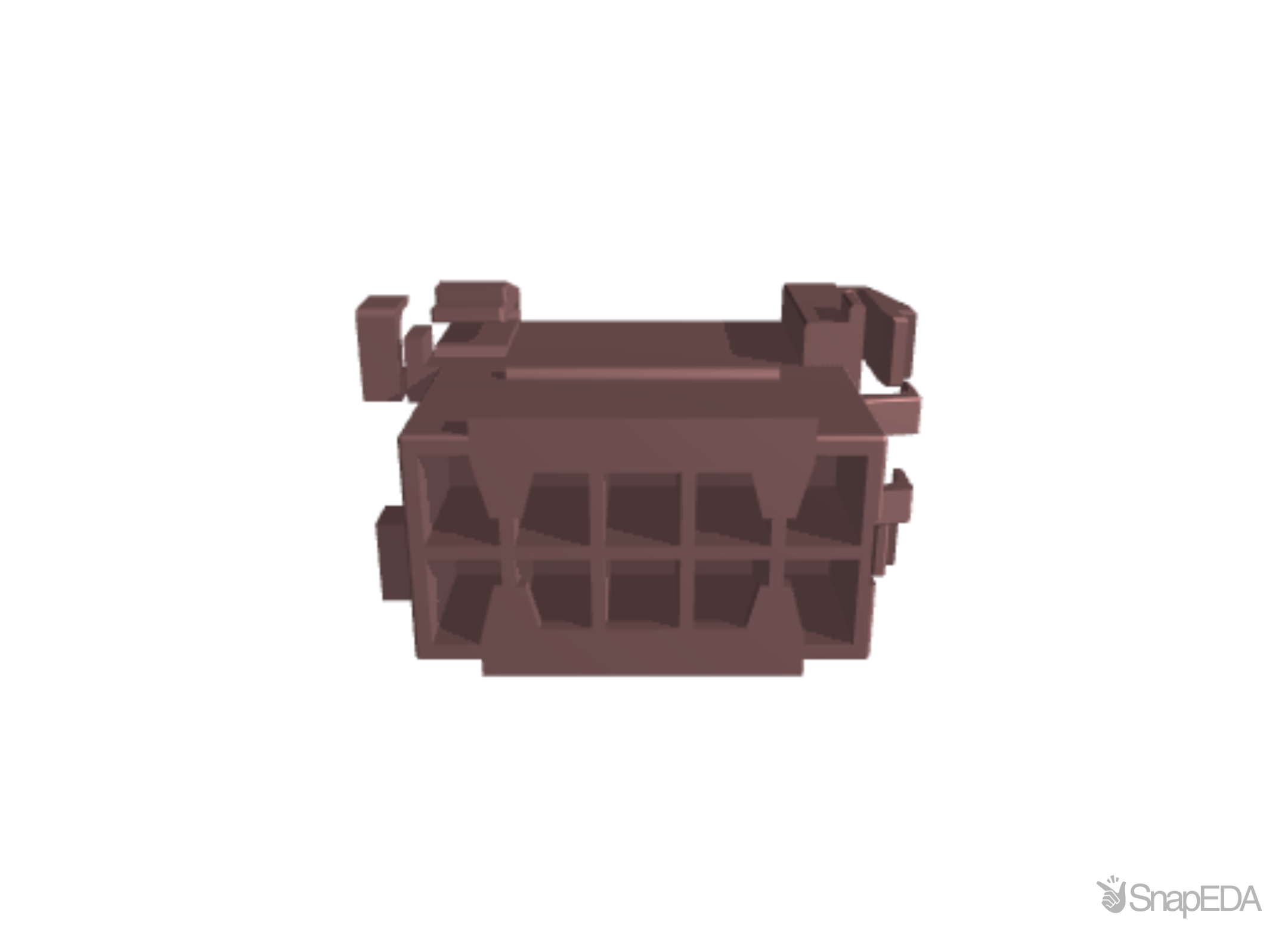

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 929505-4
| Part Name | 929505-4 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .196 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | .881 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for male terminals |
| Connector & Contact Terminates To | Wire & Cable |
| TE Internal Number | 929505-4 |
| Number of Positions | 10 |
| Connector System | Wire-to-Wire |
| Number of Rows | 2 |
| Strain Relief | No |
| Terminal Position Assurance | No |
| Polarized | Yes |
| Hybrid Connector | No |
| Packaging Method | Bag |
| Packaging Quantity | 1000 |
| Body Material | PBT |
| Cable Exit Angle | 180° |
| Serviceable | No |
| RoHS | True |
| Mating Tab Width | .11 |
| Sealable | No |
| Color | Black |
| Length | 33.8 |
| Height | 26 |
| Row-to-Row Spacing | 5.6 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Plug-In |
| Gender | Female |
| Colour | Black |
| Height | 32.6 (mm) |
| Housing Material | PBT |
| Width | 22.4 (mm) |
| Depth | 26 (mm) |
| Number Of Rows | 2 |
| Series | Junior Power Timer |
| Number Of Contacts | 10 |
| Type | Automotive connector housing |
