929989-1

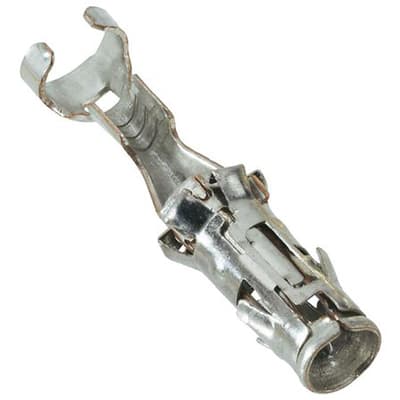

Female Crimp Contact for use with 1.5 mm System Housing Connector | TE Connectivity 929989-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 929989-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

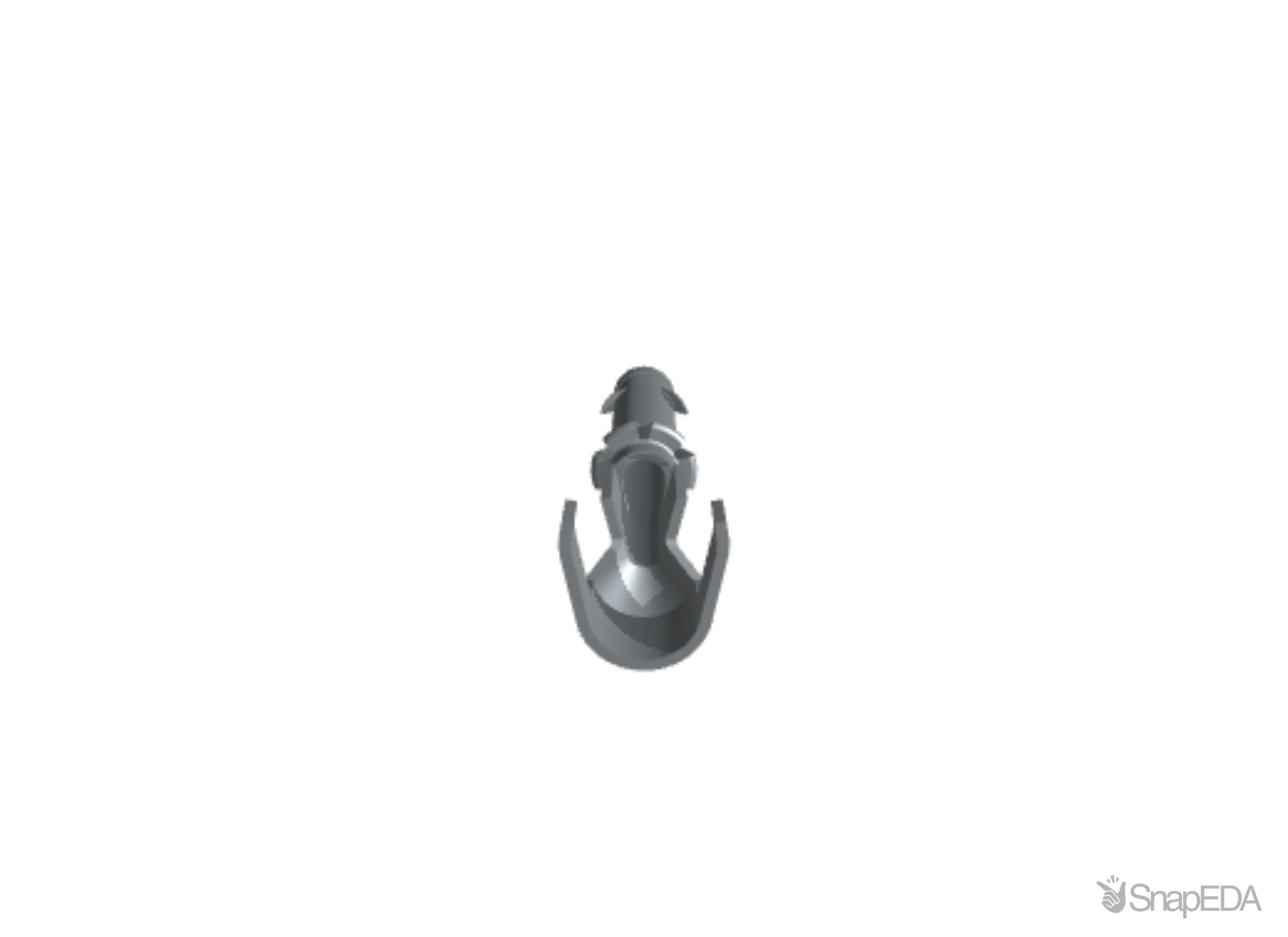

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 929989-1
| Part Name | 929989-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Wire Type | Copper |
| Operating Temperature Range | -40 – 266 |
| Terminal & Splice Type | Socket |
| Packaging Method | Reel |
| Termination Method | Crimp |
| Wire Insulation Diameter | 1.2 – 2.1 |
| TE Internal Number | 929989-1 |
| Packaging Quantity | 4000 |
| Crimp Type | F-Crimp |
| RoHS | True |
| Interface Plating | Tin (Sn) |
| Contact Termination Area Plating Material | Tin (Sn) |
| Primary Locking Feature | Locking Lance |
| Wire Size Search | 18 |
| Mating Pin Diameter | 1.5 |
| Terminal Transmits | 0 – 24 A (Low Power) |
| Wire Size | .5 – 1 |
| Receptacle Style | 180° |
| Typical Current Rating (A) | 20 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Cable Mount |
| Gender | Female |
| Contact Type | Signal |
| Length | 21.2 (mm) |
| Contact Plating | Tin |
| Termination Method | Crimp |
| For Use With | 1.5 mm System Housing Connectors |
| Wire Size | 20 → 17 AWG |
| Contact Material | Copper Nickel Silicon Alloy |
