936154-3
Housing for male terminals 090III 22P CAP ASSY L-GRY 22 POS
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 936154-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

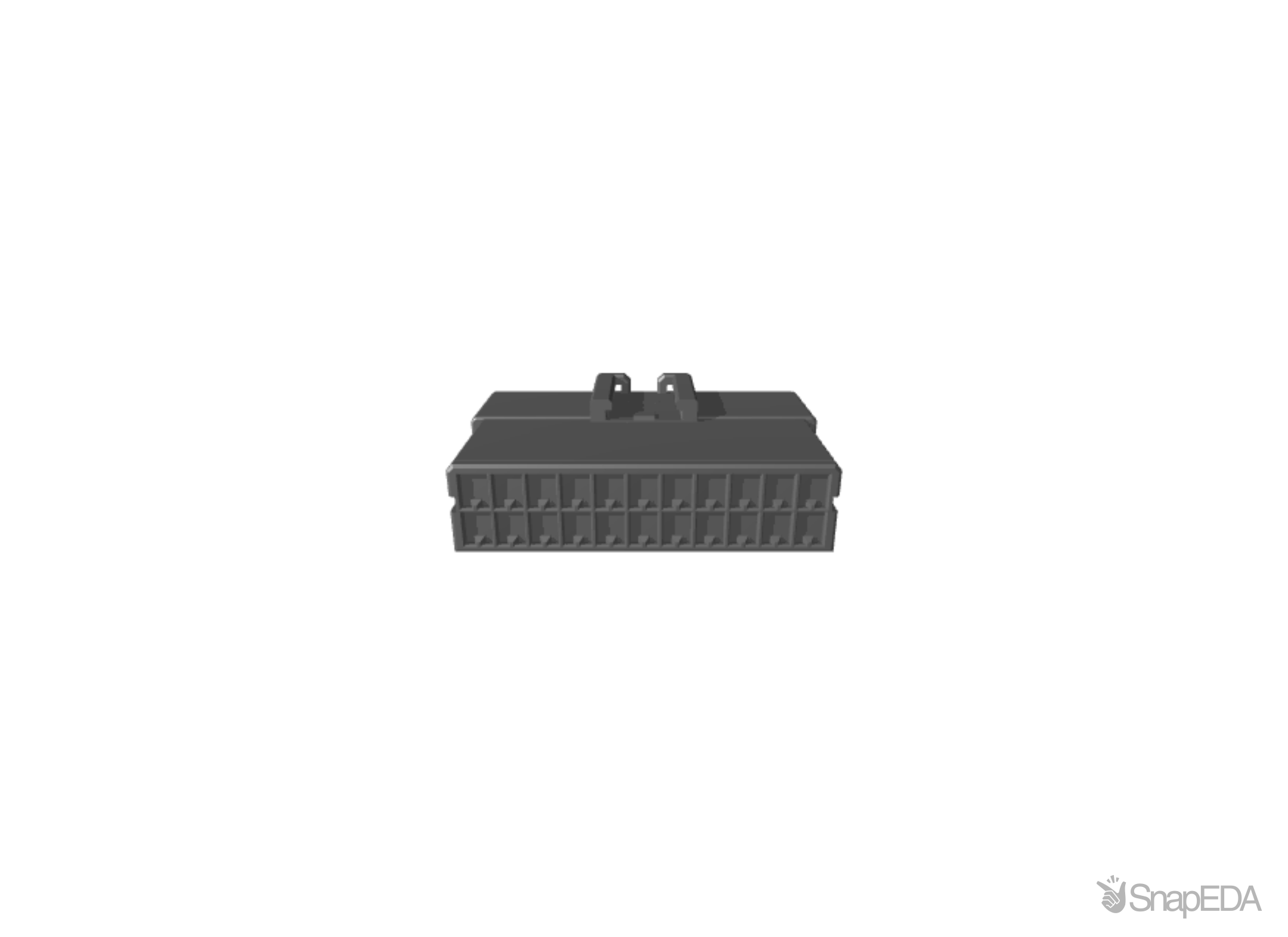

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 936154-3
| Part Name | 936154-3 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .157 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | 1.33 |
| Connector Style | Housing for male terminals |
| Connector Position Assurance Capable | No |
| Connector & Contact Terminates To | Wire & Cable |
| TE Internal Number | 936154-3 |
| Number of Positions | 22 |
| Connector System | Wire-to-Wire |
| Number of Rows | 2 |
| Sealable | No |
| Terminal Position Assurance | No |
| Polarized | Yes |
| Hybrid Connector | No |
| Packaging Method | Bag |
| Serviceable | No |
| Body Material | PBT |
| Cable Exit Angle | 180° |
| Packaging Quantity | 130 |
| Mating Tab Width | .09 |
| Strain Relief | No |
| Color | Gray |
| Length | 49.4 |
| Height | 19.7 |
| Row-to-Row Spacing | .196 |
| Primary Locking Feature | Integrated in Housing |
