95.15.2
PCB socket, for 40/44 Series relay, 5mm pinning (blue) | Finder 95.15.2
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 95.15.2 by Finder and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

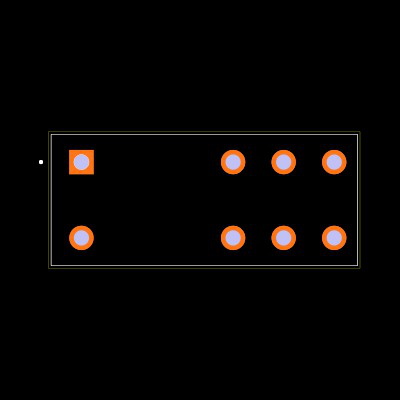

Footprint
No web preview
This Footprint is Available for

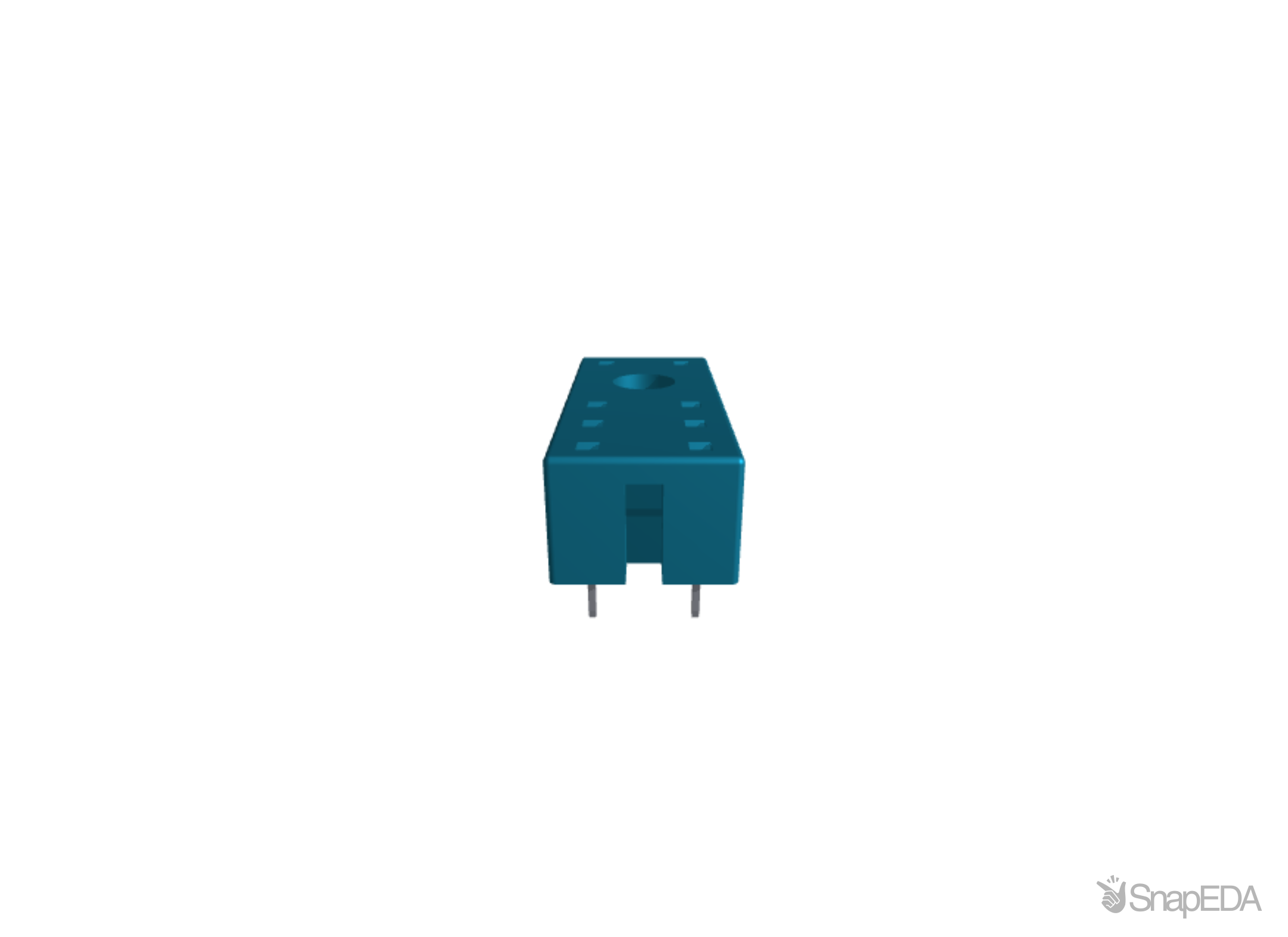

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 95.15.2
| Part Name | 95.15.2 |
| Manufacturer | Finder |
| Category | Relays |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| For Use With | 40.52, 40.61, 41.52, 41.61, 41.81, 44.52, 44.62, 40.51 Series Relay |
| Series | 95 |
| Current Rating (A) | 10 (A) |
| Voltage (V) | 250 (V ac) |
| Mounting Type | PCB Mount |
