95501-2661

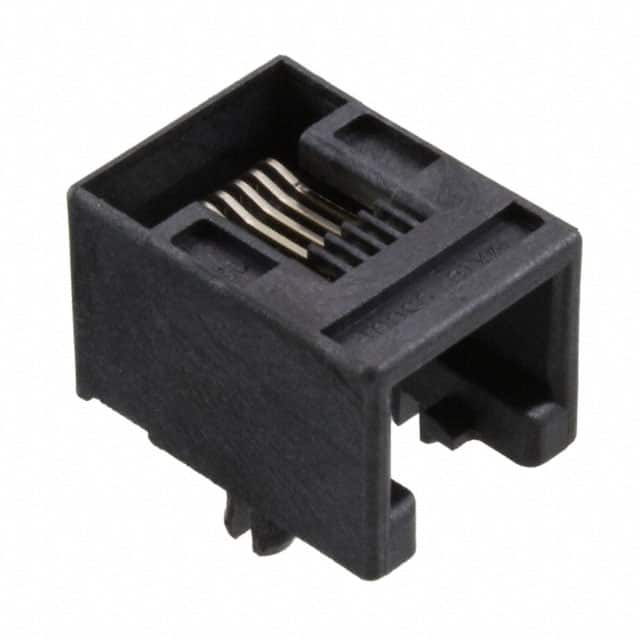

Jack Modular Right Angle Through Hole RJ12 6 Pos 6 Cnts Gold | Molex Incorporated 95501-2661
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 95501-2661 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 95501-2661
| Part Name | 95501-2661 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Ways | 6P/6C |
| Orientation | Right Angle |
| Mounting Type | Through Hole |
| Gender | Female |
| Shield Type | UTP |
| Length | 13.21 (mm) |
| Width | 11.5 (mm) |
| Depth | 18.1 (mm) |
| Ethernet Connector Type | RJ12 Connector |
| Contact Plating | Gold over Nickel |
| Series | 95501 |
| Series Number | 95501 |
| Contact Material | Phosphor Bronze |
No issues have been reported for the 95501-2661
If you experienced any issues with the symbol or footprint, please report it.
