95501-6449

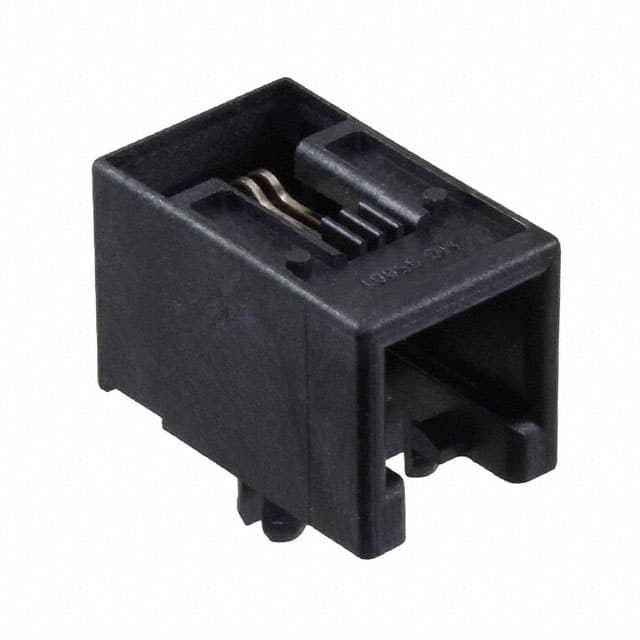

Cat3 4P4C Right Angle Cable Mount Unshielded RJ22 Modular Jack Connector | Molex Incorporated 95501-6449
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 95501-6449 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

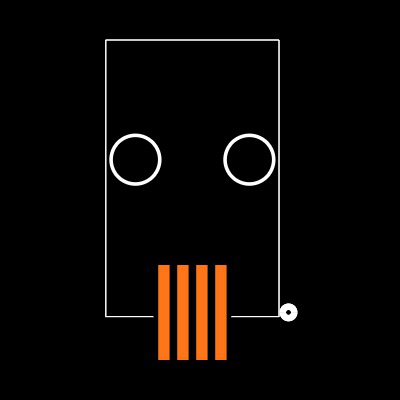

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 95501-6449
| Part Name | 95501-6449 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Copper Alloy |
| Number Of Ways | 4P4C |
| Orientation | Right Angle |
| Mounting Type | Surface Mount |
| Gender | Female |
| Shield Type | Unshielded |
| Depth | 11.5 (mm) |
| Width | 11.18 (mm) |
| Length | 18.1 (mm) |
| Ethernet Connector Type | RJ11 Connector |
| Contact Plating | Gold |
| Series | 95501 |
| Lan Category | Cat3 |
| Series Number | 95501 |
Inventory for the 95501-6449 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,760
|
|
Visit Site | |
|
★ Featured
|
4,611
|
|
Visit Site | |
|
★ Featured
|
1,967
|
1,095 x $0.27
|
Visit Site | |
| Onlinecomponents |
743
|
|
Visit Site | |
| RS Americas |
245
|
1 x $0.47
|
Visit Site | |
| Verical |
735
|
|
Visit Site |
No issues have been reported for the 95501-6449
If you experienced any issues with the symbol or footprint, please report it.
