963531-1
Heavy Duty Sealed Conn SER(HDSCS )SER Cavity Plug For Micro Trimer II Conns | TE Connectivity 963531-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 963531-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

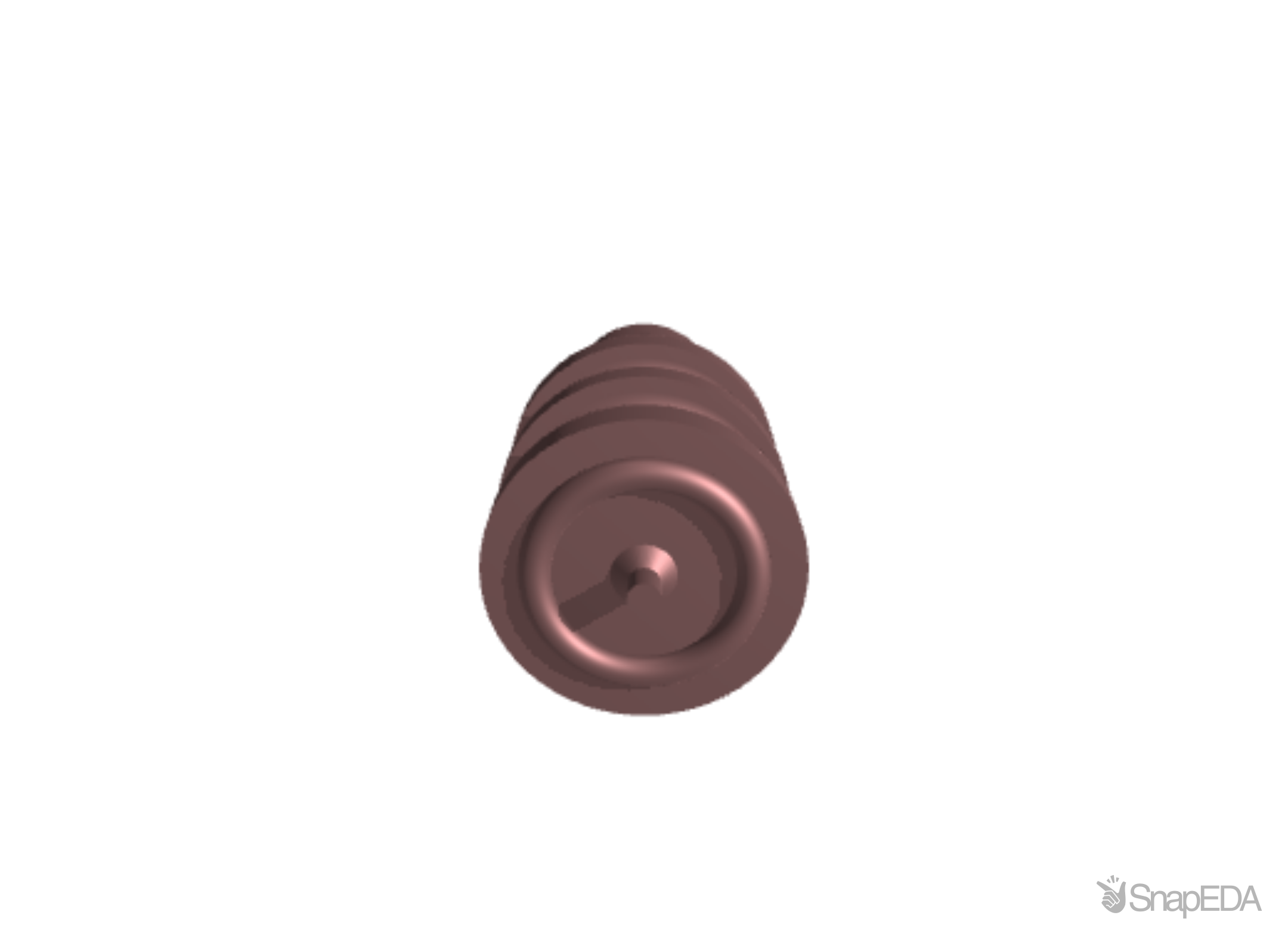

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 963531-1
| Part Name | 963531-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Cable Insulation Diameter | 3.9 |
| シールのタイプ | Cavity Blanking Plug |
| Color | White |
| Material | Silicone |
| TE Internal Number | 963531-1 |
| UL Flammability Rating | None |
| Shore A Hardness | 50 |
| Cavity Diameter | .142 |
| Lubricant Content | Yes |
| Operating Temperature Range | -40 – 266 |
| Resistance to Hydrocarbons | Poor |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | Heavy Duty Sealed Connector Series (HDSCS ) |
| Type | Cavity Plug |
Inventory for the 963531-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
825,542
|
|
Visit Site | |
|
★ Featured
|
700,394
|
|
Visit Site | |
|
★ Featured
|
61,000
|
29,130 x $0.01
|
Visit Site | |
| Arrow Europe |
2,003,468
|
|
Visit Site | |
| Verical |
72,512
|
72,512 x $0.02
|
Visit Site |
No issues have been reported for the 963531-1
