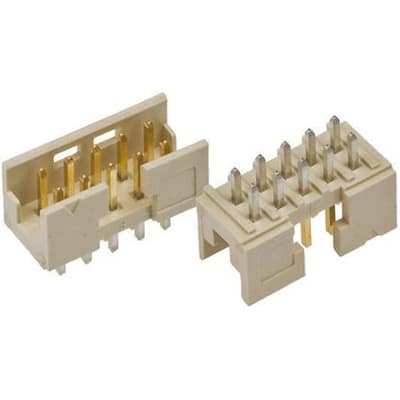

98414-G06-06LF
Conn;Rect;ShroudedHdr;6Cnts;ThruMount;Minitek;2mmPin-Spng;Vert;DblRow | Amphenol FCI (Amphenol CS) 98414-G06-06LF
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 98414-G06-06LF by Amphenol and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

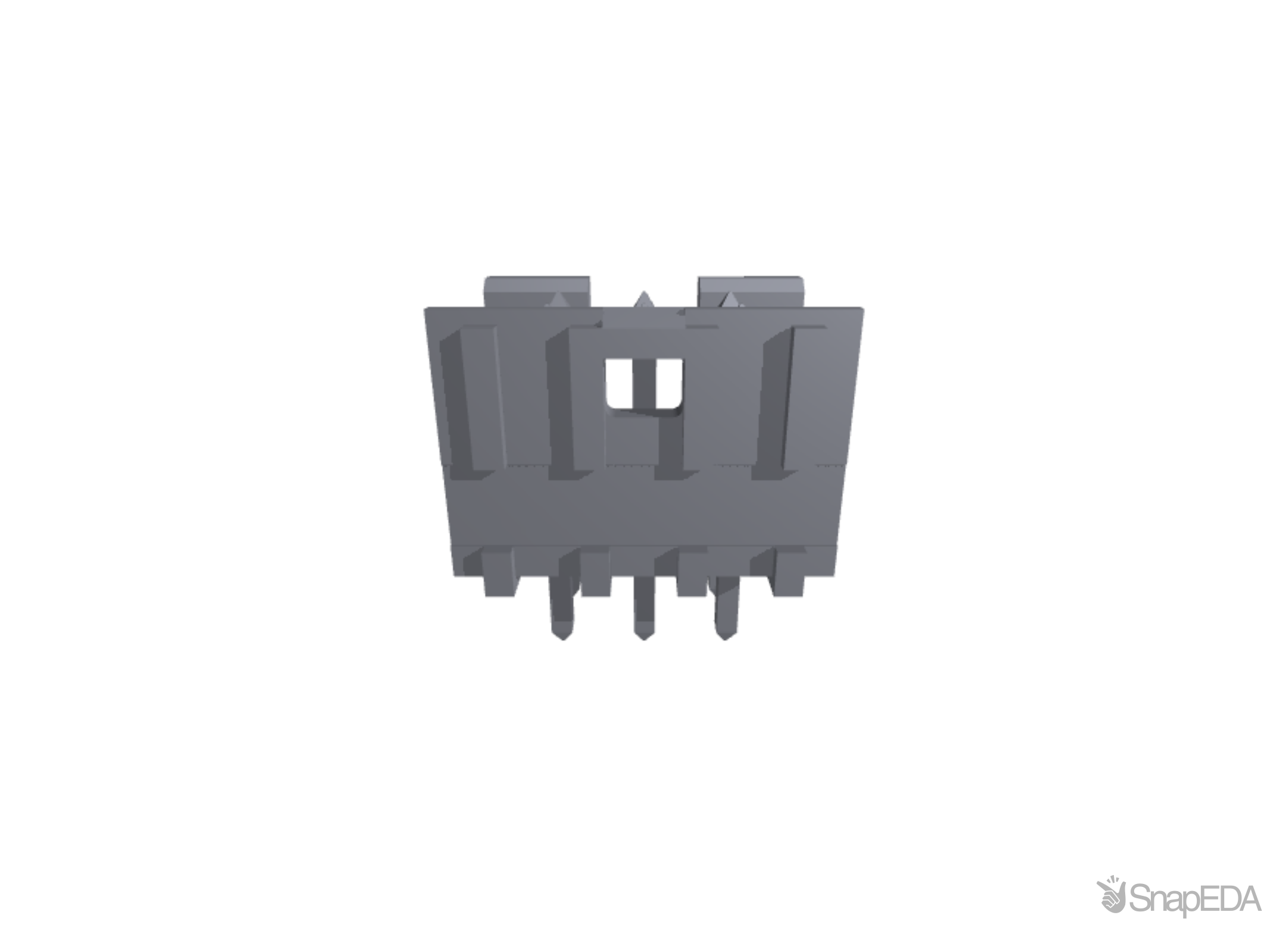

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 98414-G06-06LF
| Part Name | 98414-G06-06LF |
| Manufacturer | Amphenol ICC |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Drawing/Datasheet | Drawing/Datasheet |
| eBrochure | eBrochure |
| Shrouded/Unshrouded | Shrouded |
| Current Rating (A) | 2.0 (A) |
| Mounting Type | Through Hole |
| Series | Minitek |
| Body Orientation | Straight |
| Termination Method | Solder |
| Connector System | Board to Board, Wire to Board |
| Number Of Rows | 2 |
| Contact Plating | Gold |
| Pitch | 2.0 (mm) |
| Number Of Contacts | 6 |
| Contact Material | Copper Alloy |
