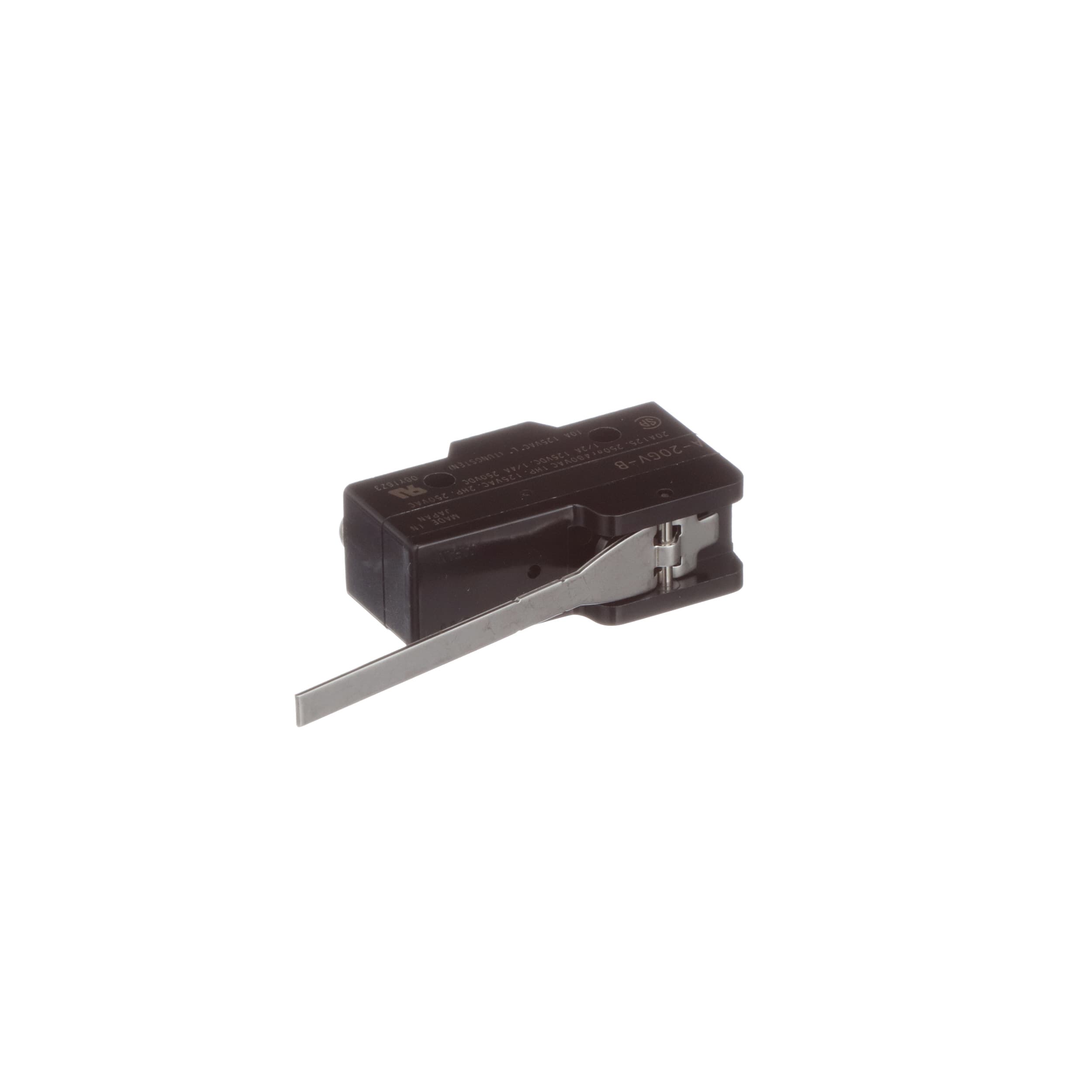

A-20GV-B
SWITCH SNAP ACTION HIGH-CAPACITY SCREW TERMINALS HINGE LEVER ACTUATOR | Omron Automation A-20GV-B
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the A-20GV-B by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the A-20GV-B
| Part Name | A-20GV-B |
| Manufacturer | Omron |
| Category | Switches |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Voltage (V) | 250 (V) |
| Maximum Ac Voltage (V) | 500 (V) |
| Mounting Orientation | Panel, Side |
| Width | 17.45 (mm) |
| Minimum Operating Temperature | -25 (°C) |
| Maximum Current (A) | 20 (A) |
| Ip Rating | IP00 |
| Depth | 29.4 (mm) |
| Pole And Throw Configuration | SPDT |
| Action Type | Snap Action |
| Length | 49.2 (mm) |
| Actuator Type | Lever |
| Normal State Configuration | NO/NC |
| Mechanical Life | 1000000 (Operations) |
| Maximum Operating Temperature | +85 (°C) |
| Connection Type | Screw |
Inventory for the A-20GV-B by Omron from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
38
|
|
Visit Site | |
|
★ Featured
|
117
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
134
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Interstate Connecting Components |
|
|
Visit Site | |
| Newark |
134
|
|
Visit Site | |
| Relay Specialties |
280
|
|
Visit Site | |
| Sager |
30
|
|
Visit Site | |
| TME |
80
|
|
Visit Site | |
| TTI Americas |
|
1 x $20.20
|
Visit Site | |
| Verical |
76
|
|
Visit Site | |
| element14 Singapore |
134
|
|
Visit Site |
No issues have been reported for the A-20GV-B
