A000093

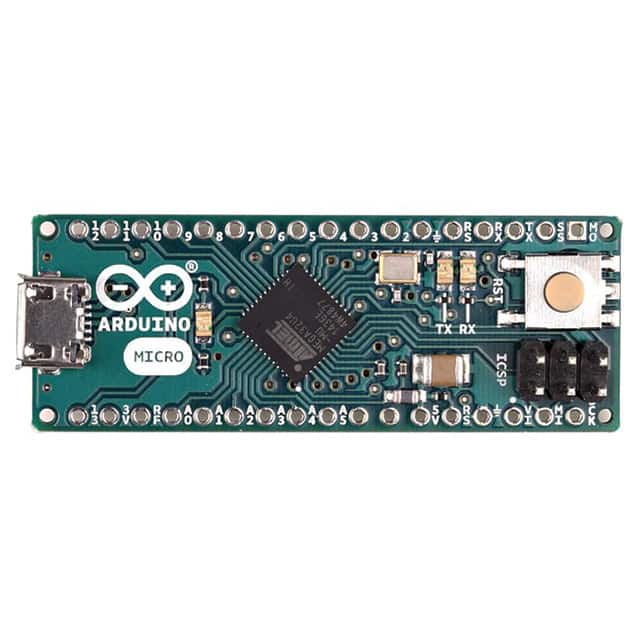

The Arduino Micro without Headers (A000093) is an 8-bit AVR MCU development board featuring the ATmega32U4 processor. This compact evaluation platform offers a clock speed of 16 MHz and operates at a 5V logic level, making it suitable for various embedded applications. It provides 20 digital I/O pins, 7 of which can be used as PWM outputs, and 12 analog input pins, allowing for multiple interfacing options. It has 32KB Flash, 2.5KB SRAM, and 1KB EEPROM. The board supports programming via the Arduino IDE, and includes a micro USB connection along with an ICSP header. Ideal for prototyping, the Arduino Micro without headers is perfect for engineers looking for a small, breadboard-friendly form factor.
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the A000093 by Arduino and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

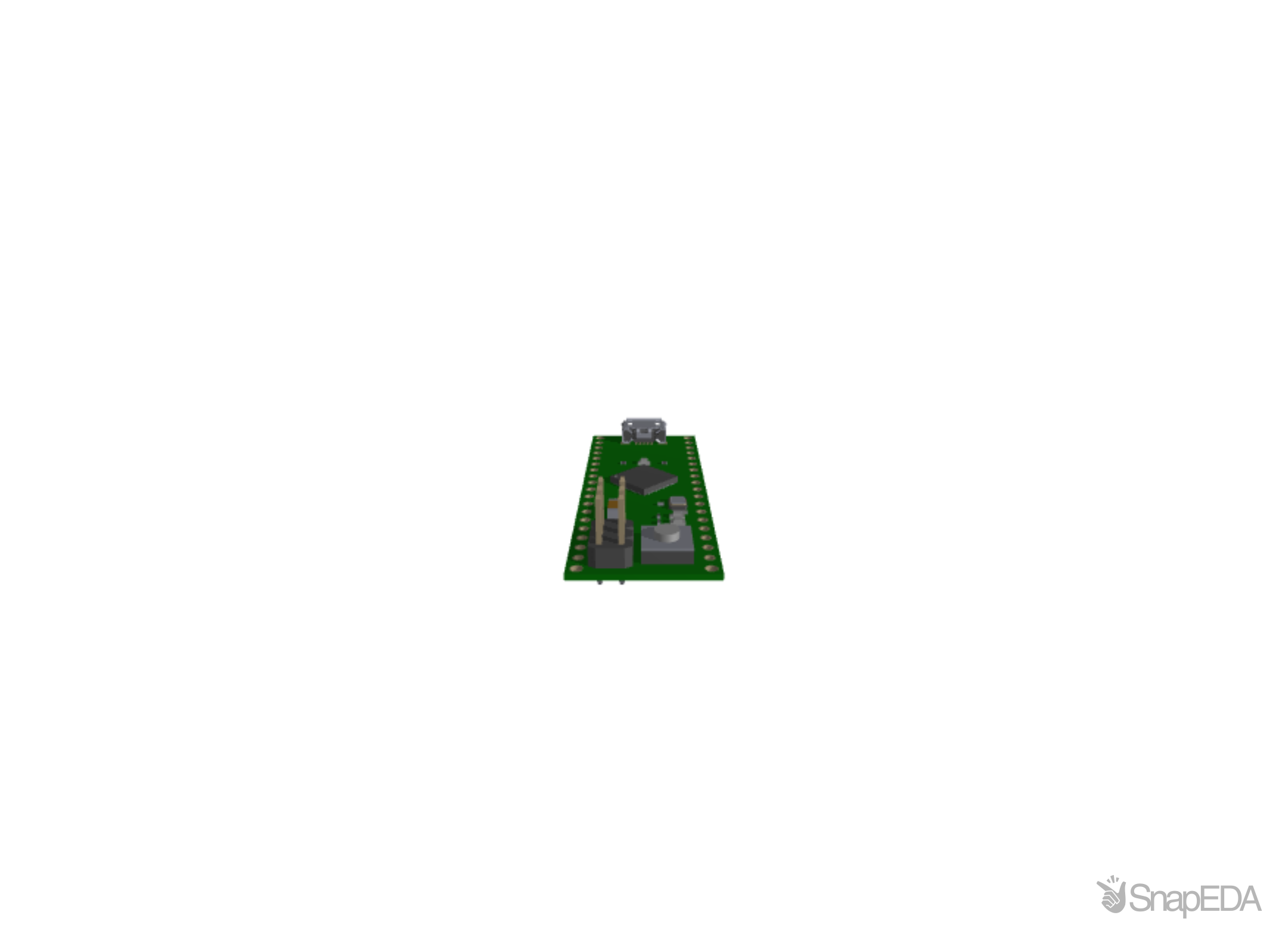

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the A000093
| Part Name | A000093 |
| Manufacturer | Arduino |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the A000093
