A105MYV30Q04

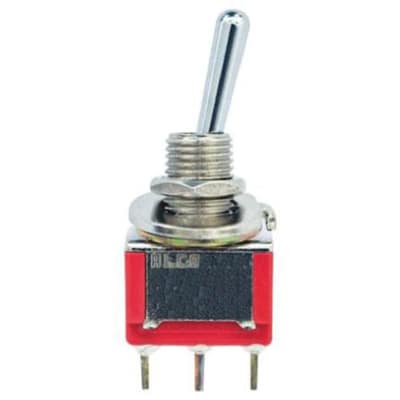

Alcoswitch, SWITCH, A TOGGLE, M ACTUATOR, Y BUSHING, V30 TERMINAL, Q CONTACT | TE Connectivity A105MYV30Q04
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the A105MYV30Q04 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the A105MYV30Q04
| Part Name | A105MYV30Q04 |
| Manufacturer | TE Connectivity |
| Category | Switches |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Resistance | 0.01 (Ω) |
| Standards Met | RoHS |
| Mounting Type | PCB |
| Operating Temperature Range | -30 → +85 (°C) |
| Contact Current Rating (A) | 5 A @ 28 V dc |
| Voltage Rating (V) | 120 ac/dc, 28 (V ac/dc) |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30 (°C) |
| Maximum Operating Temperature | +85 (°C) |
| Terminal Type | Through Hole |
| Switch Operation | (On)-Off-(On) |
