A79114-001
SnapVerified

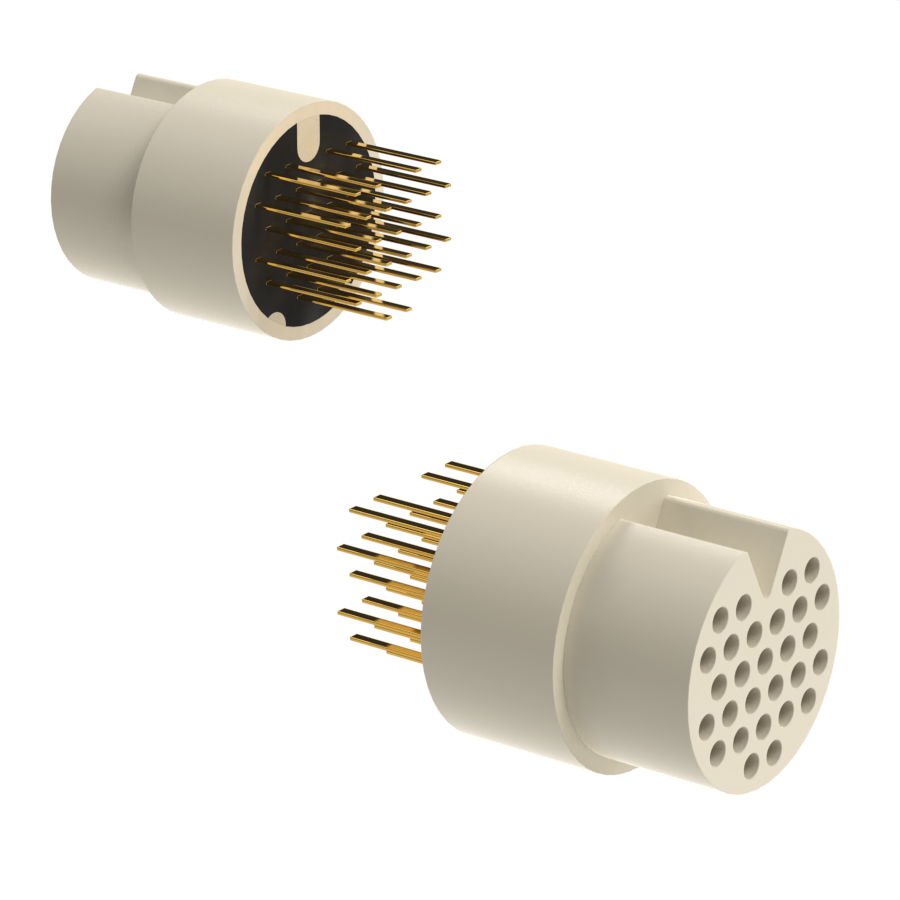

NCP-28-DD-.10, Nano Circular Plastic 28 Pin Contact Straight Thru Hole Vertical Plug Connector
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the A79114-001 by Omnetics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

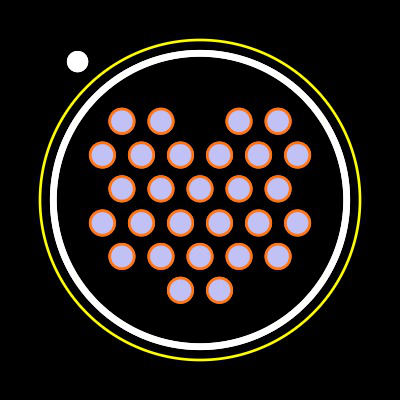

- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the A79114-001
| Part Name | A79114-001 |
| Manufacturer | Omnetics |
| HTS Code | 8536.69.4040 |
| Mounting Type | Through Hole, Straight |
| Package | Connector |
| Series | Nano Circular |
| CAGE Code | 61873 |
| ECCN Number | EAR99 |
| RoHS | True |
| RoHS Compliant | {'is_url': False, 'value': False} |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
