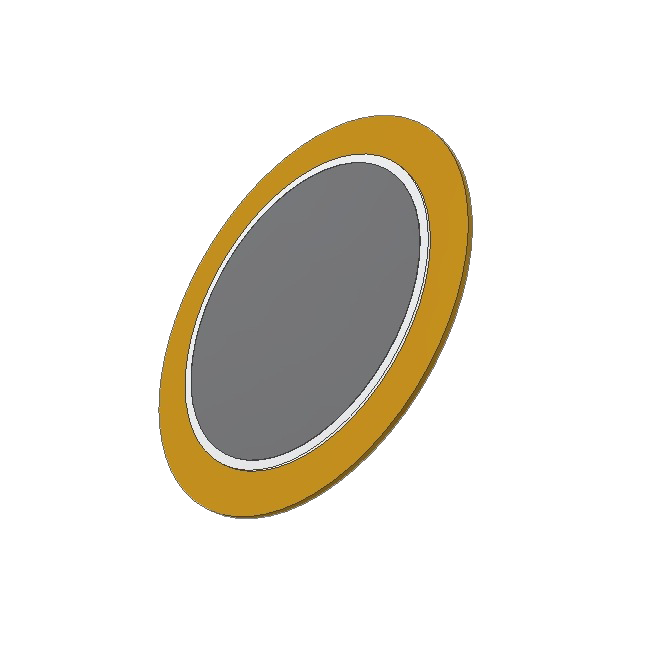

PIEZO BENDER 4600HZ 20VP-P
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AB2746B by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

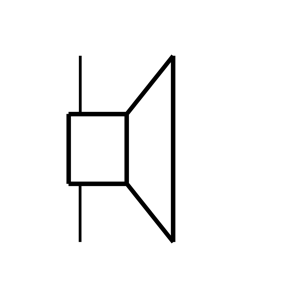

Symbol
No web preview
This Symbol is Available for

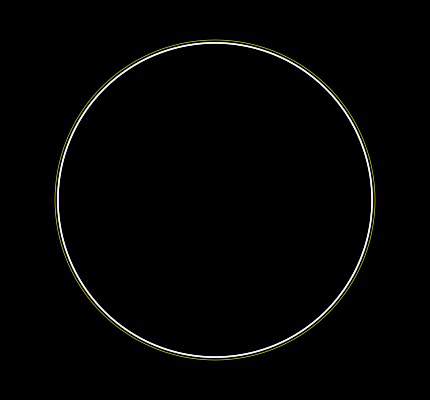

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the AB2746B
Part Name | AB2746B |
Manufacturer | PUI Audio |
Exemption | 7C |
Tolerance Khz | 0.5 |
Country Code | CN |
Plate Material | Brass |
Operating Temp. | -20 to 70 |
Impedance Max | 250.0 |
Lead Time | 130 |
Max Input Voltage (V) | 20.0 |
Resonant Frequency Khz | 4.6 |
MULT | 80 |
Status | Active |
HTS Code | 8531.80.9041 |
Capacitance at 100 Hz | [0, 16] |
SPQ | 80 |
MOQ | 80 |
Tolerance percentage | 30.0 |
REACH | No |
SPU | ROLL |
Shape | Round |
Dimmensions in mm. | 27 x 27 x 0.53 |
Temp. Grade | Standard |
RoHS | Yes |
Product Link | https://www.puiaudio.com/products/ab2746b |
