AB5027B-3

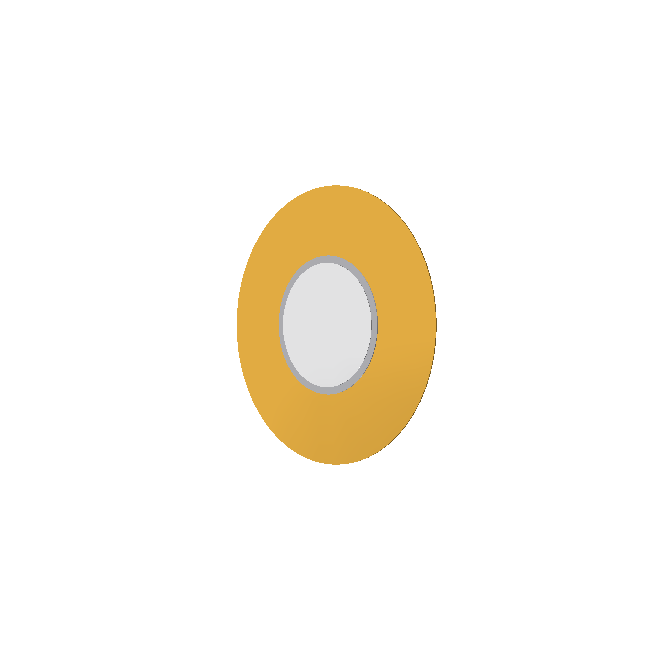

50MM PIEZO BENDER 2.7KHZ 40000PF 30VPP BRASS ROUND
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AB5027B-3 by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AB5027B-3
| Part Name | AB5027B-3 |
| Manufacturer | PUI Audio |
| Tolerance Khz | 0.5 |
| Lead Time | 115 |
| Resonant Frequency Khz | 2.7 |
| MULT | 150 |
| Status | Active |
| Capacitance at 100 Hz | [0, 40] |
| SPQ | 150 |
| Tolerance percentage | 30.0 |
| REACH | No |
| SPU | ROLL |
| RoHS | Yes |
| Exemption | 7C |
| Country Code | CN |
| Plate Material | Brass |
| Operating Temp. | -20 to 60 |
| Impedance Max | 500.0 |
| Max Input Voltage (V) | 30.0 |
| Temp. Grade | Standard |
| HTS Code | 8531.80.9041 |
| MOQ | 150 |
| Shape | Round |
| Dimmensions in mm. | 50 x 50 x 0.41 |
| Product Link | https://www.puiaudio.com/products/ab5027b-3 |
