ABLNO-V-100.000MHZ
Ultra Low Phase Noise XO / VCXO
Availability: In Stock
Package Type: SMD-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ABLNO-V-100.000MHZ by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

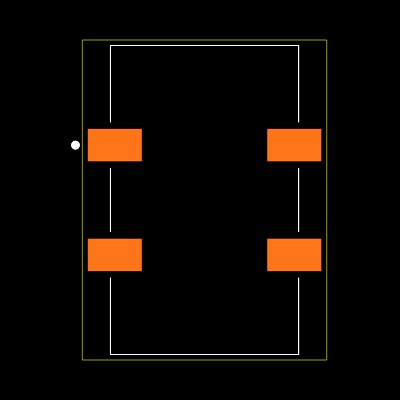

Footprint
No web preview
This Footprint is Available for

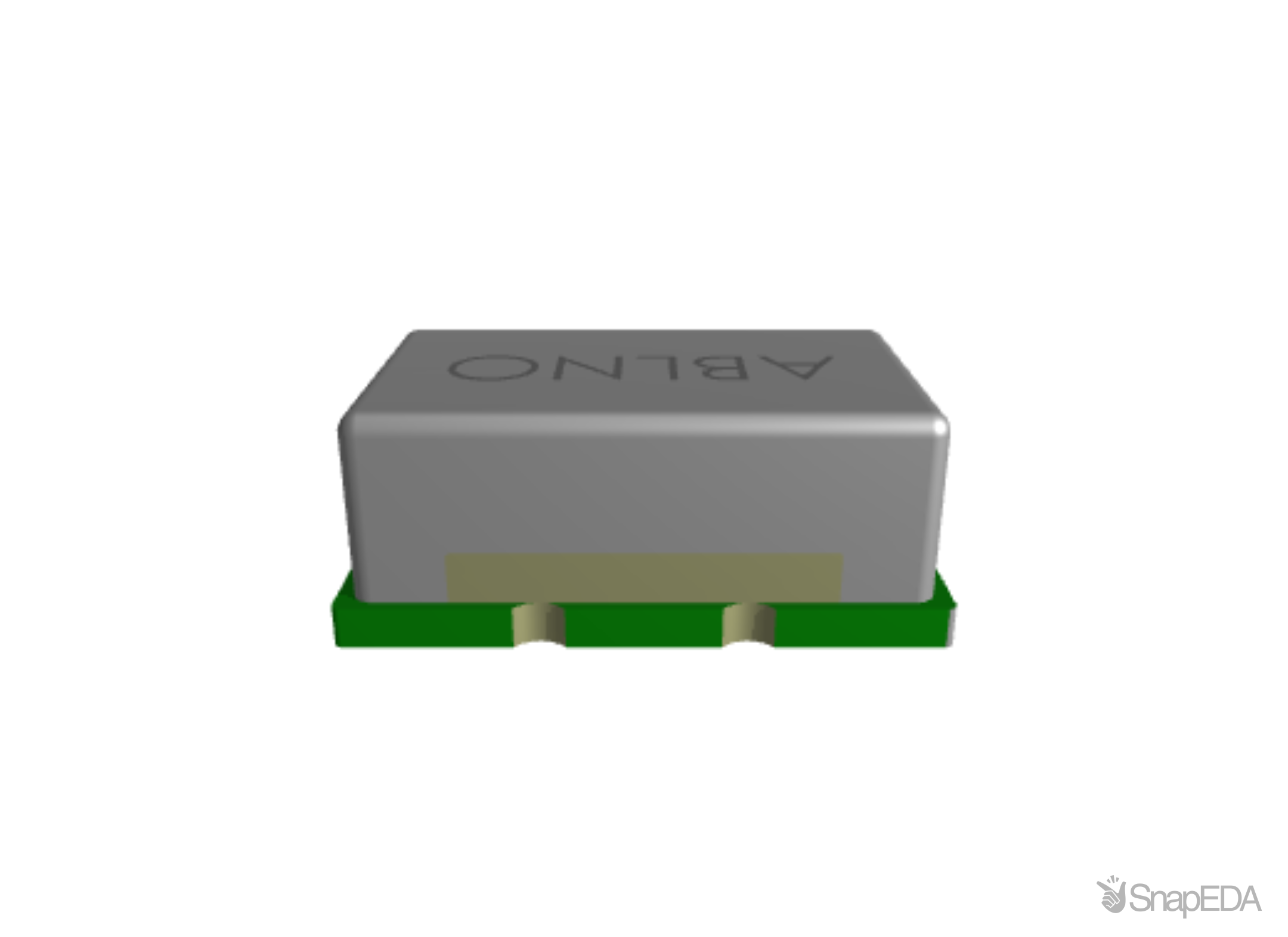

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ABLNO-V-100.000MHZ
| Part Name | ABLNO-V-100.000MHZ |
| Manufacturer | Abracon |
| RoHS | True |
| Product Link | https://abracon.com/parametric/oscillators/ABLNO-V-100.000MHZ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Level | LVCMOS |
| Package Type | SMD |
| Output Frequency | 100 (MHz) |
| Load Capacitance | 15 (pF) |
| Oscillator Type | VCXO |
