ABM3B-16.000MHZ-10-1-U-T
16 MHz ±10ppm Crystal 10pF 50 Ohms 4-SMD, No Lead
Availability: In Stock
Package Type: SMD-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ABM3B-16.000MHZ-10-1-U-T by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

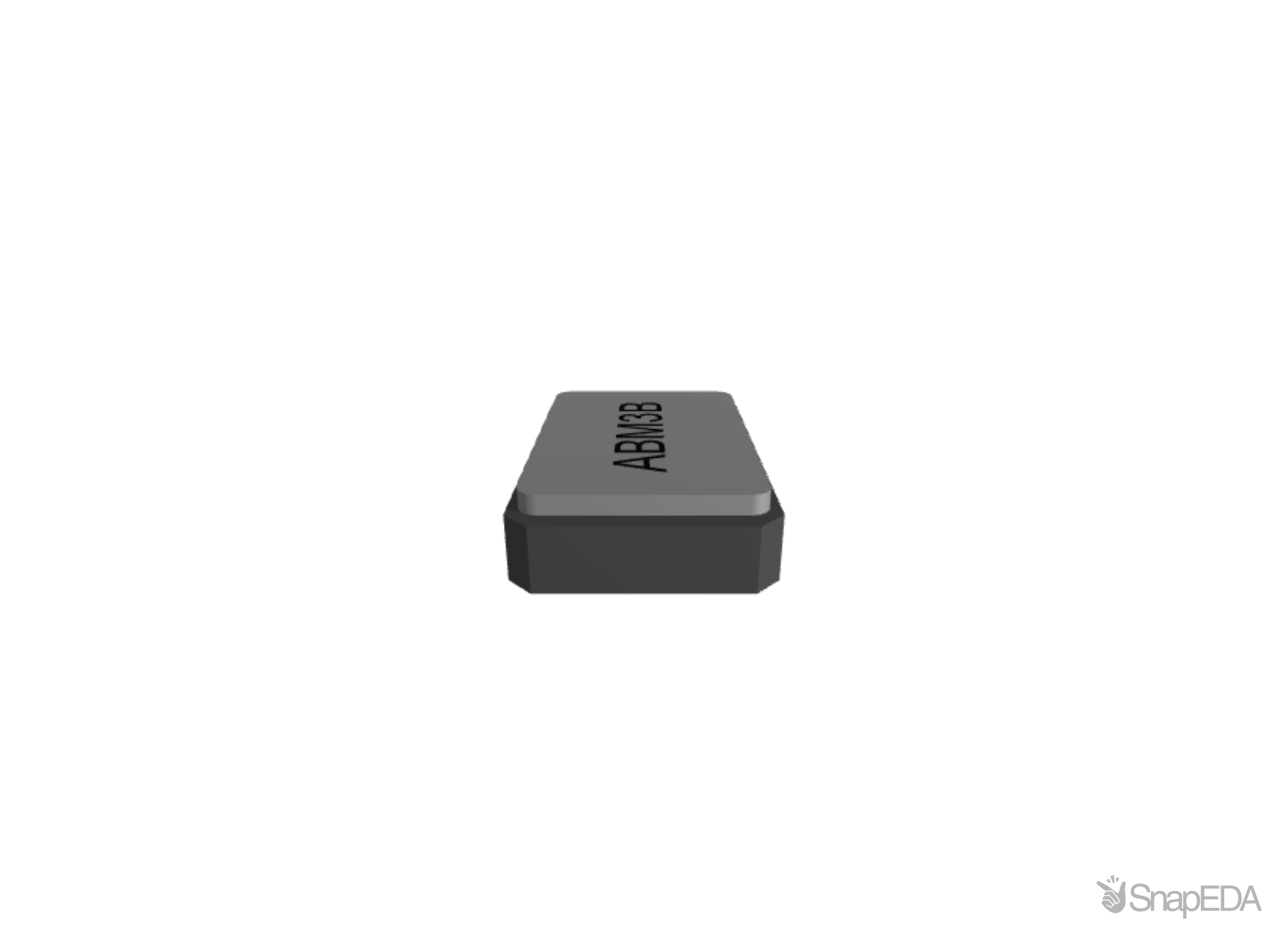

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ABM3B-16.000MHZ-10-1-U-T
| Part Name | ABM3B-16.000MHZ-10-1-U-T |
| Manufacturer | Abracon |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Frequency Tolerance | ±10 (ppm) |
| Dimensions | 5 x 3 x 1.1 (mm) |
| Mounting Type | Surface Mount |
| Height | 1.1 (mm) |
| Frequency Stability | ±10 (ppm) |
| Width | 3.2 (mm) |
| Length | 5 (mm) |
| Package Type | SMD |
| Minimum Operating Temperature | -10 (°C) |
| Maximum Operating Temperature | 60 (°C) |
| Load Capacitance | 10 (pF) |
| Standard Frequency | 16 (MHz) |
