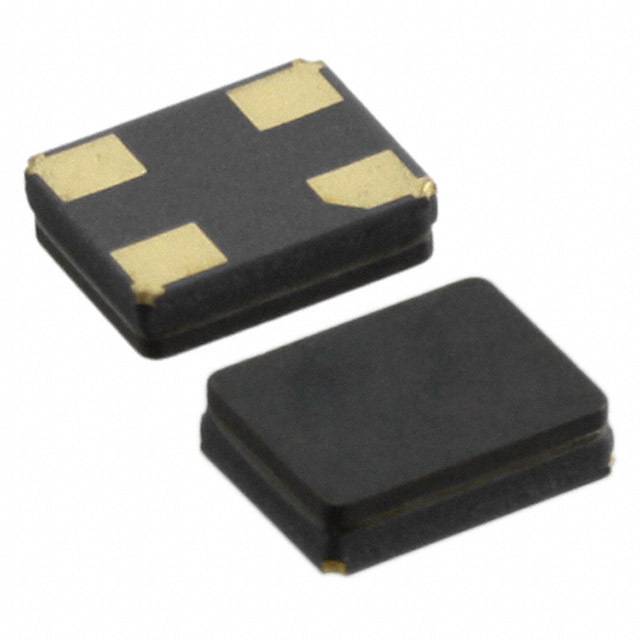

ABM8G-12.000MHZ-4Y-T3
12 MHz ±30ppm Crystal 10pF 120 Ohms 4-SMD, No Lead
Availability: Out of Stock
Package Type: SMD-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ABM8G-12.000MHZ-4Y-T3 by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ABM8G-12.000MHZ-4Y-T3
| Part Name | ABM8G-12.000MHZ-4Y-T3 |
| Manufacturer | Abracon |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Series Resistance | 120 (Ω) |
| Frequency Tolerance | ±30 (ppm) |
| Dimensions | 3.2 x 2.5 x 1 (mm) |
| Mounting Type | Surface Mount |
| Height | 1 (mm) |
| Frequency Stability | ±30 (ppm) |
| Width | 2.5 (mm) |
| Length | 3.2 (mm) |
| Package Type | SMD |
| Minimum Operating Temperature | -10 (°C) |
| Load Capacitance | 10 (pF) |
| Maximum Operating Temperature | 60 (°C) |
| Pin Count | 4 |
| Standard Frequency | 12 (MHz) |
We could not find inventory or pricing across major distributors for the ABM8G-12.000MHZ-4Y-T3 by Abracon.
Related Questions
I need the correct 3D model of this part
The 3D model does not match the manufacturer spec
Added 6 years, 7 months ago.
No issues have been reported for the ABM8G-12.000MHZ-4Y-T3
