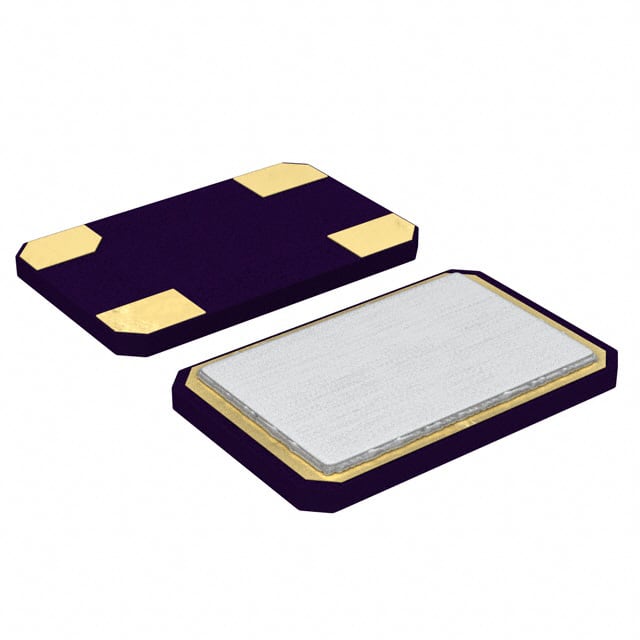

ABM8W-18.4320MHZ-4-D1X-T3
Crystal 18.432MHz ±10ppm (Tol) ±20ppm (Stability) 4pF FUND 100Ohm 4-Pin SMD T/R
Availability: In Stock
Package Type: NON-STANDARD-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ABM8W-18.4320MHZ-4-D1X-T3 by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
