ABX00049

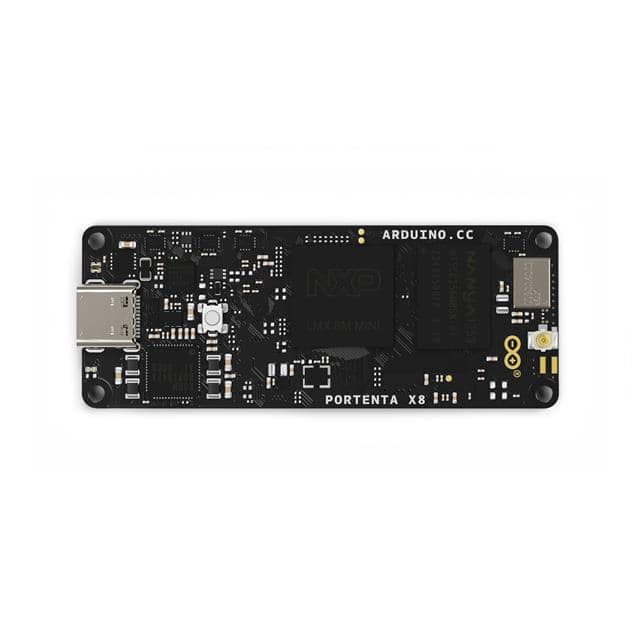

The Arduino Portenta X8 is a high-performance system on module for industrial IoT. It combines an NXP i.MX 8M Mini (4+1 cores) running embedded Linux with an STM32H7 (2 cores) for real-time Arduino tasks. This powerful board offers digital and analog I/O capabilities, enabling complex applications. Its dual-processor architecture allows for multi-threaded operations alongside time-critical tasks. Compatibility with shield and carrier boards extends functionality and provides reference designs for custom solutions. The Portenta X8 is ideal for developers pushing industrial IoT boundaries, offering a robust platform for sophisticated embedded systems requiring both high-level processing and real-time control. It's perfect for projects demanding advanced computing in compact, efficient packages.
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ABX00049 by Arduino and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
