ACAG0301-24505500-T
2.4GHz, 5.5GHz Bluetooth, ISM, Wi-Fi Chip RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz 2.23dBi, 4.05dBi Solder Surface Mount
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ACAG0301-24505500-T by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates

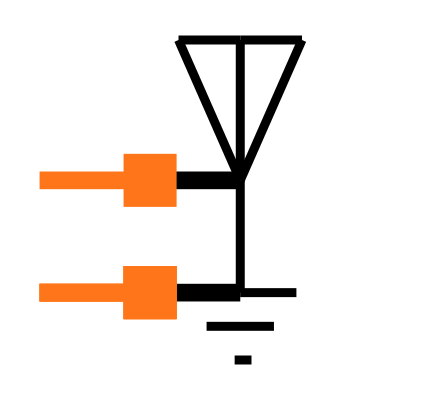

Symbol
No web preview
This Symbol is Available for

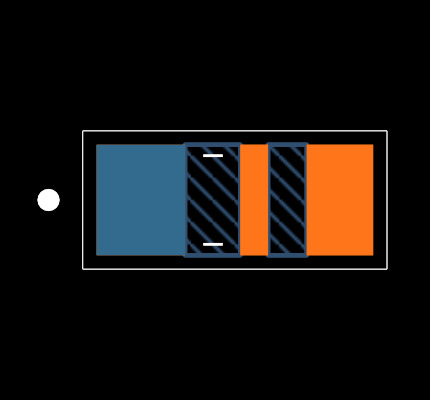

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ACAG0301-24505500-T
| Part Name | ACAG0301-24505500-T |
| Manufacturer | Abracon |
| Frequency Range | 2450 | 5500 |
| Gain Maximum | 4.05 |
| Mounting | Surface Mount |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Width | 1.6 |
| Type | Internal/Embedded |
| Bandwidth Max | 800 |
| Frequency Minimum | 2450 |
| Sub-type | Chip |
| Gain Display | 2.23 | 4.05 |
| Product Link | https://abracon.com/uploads/resources/Abracon-Antennas-for-High-Precision-GNSS-Applications.pdf |
| Length | 3.2 |
| ESD | No |
| Bandwidth Min | 100 |
| RoHS | Yes |
| Polarization | Linear |
| Application Note | https://abracon.com/uploads/resources/Abracon-Antennas-for-High-Precision-GNSS-Applications.pdf |
| Protocol | Wi-Fi/BT, Wi-Fi, BT/BLE/Zigbee, ISM |
| Frequency Maximum | 5850 |
| Height | 1.2 |
| Gain Minimum | 2.23 |
| Bandwidth Range | 100 | 800 |
| VSWR | 2.6 |
| MSL level | 3 |
| Pb Free | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3.2 x 1.6 x 1.2 (mm) |
| Physical Form | Chip |
| Rf Protocols | WiFi (Dual Band) |
| Height | 1.2 (mm) |
| Width | 1.6 (mm) |
| Length | 3.2 (mm) |
| Gain | 2.23 dBi, 4.05 (dBi) |
