ACASA1001E3001P100

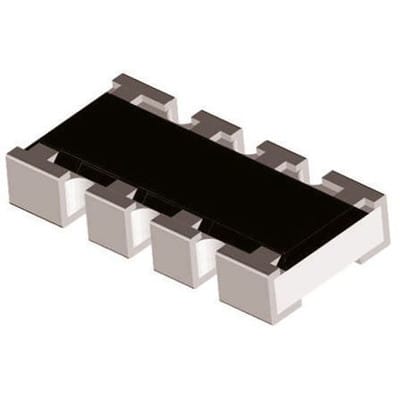

ACAS 0612 SMD Array,0.25%,0.3W,1K/3K | Vishay Dale ACASA1001E3001P100
Availability: Out of Stock
Package Type: 1206
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ACASA1001E3001P100 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol

No web preview
This Symbol is Available for
Footprint

No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the ACASA1001E3001P100
Part Name | ACASA1001E3001P100 |
Manufacturer | Vishay Beyschlag |
Category | Electronic Components |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
Power Rating Per Resistor | 0.1 (W) |
Tolerance | ±0.25 (%) |
Package Case | 0612 (1632M) |
Series | ACAS 0612 - Precision |
Resistor Type | Array |
Termination Style | Convex |
Resistance | 1 kΩ, 3 (kΩ) |
Temperature Coefficient | ±25 (ppm/°C) |
Height | 0.55 (mm) |
Depth | 1.6 (mm) |
Length | 3.2 (mm) |
Number Of Resistors | 4 |
Minimum Operating Temperature | -55 (°C) |
Case Style | Moulded |
Power Rating | 0.3 (W) |
Circuit Designator | ISOL |
Maximum Operating Temperature | +125 (°C) |
Number Of Terminals | 8 |
Dimensions | 3.2 x 1.6 x 0.55 (mm) |
