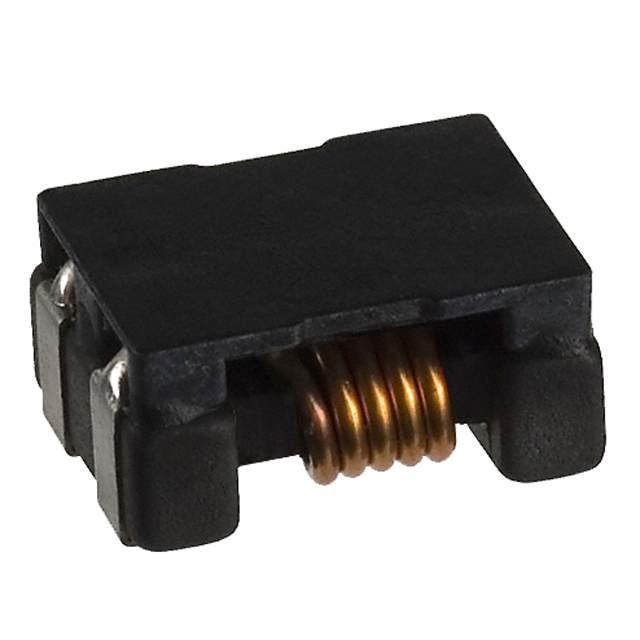

ACM70V-701-2PL-TL00
2 Line Common Mode Choke Surface Mount 700 Ohms @ 100 MHz 4A DCR 15mOhm
Availability: Out of Stock
Package Type: HORIZONTAL-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ACM70V-701-2PL-TL00 by TDK Corporation and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ACM70V-701-2PL-TL00
| Part Name | ACM70V-701-2PL-TL00 |
| Manufacturer | TDK |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 15 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 7 x 6 x 3.5 (mm) |
| Shielded | Yes |
| Series | ACM-V |
| Depth | 6 (mm) |
| Height | 3.5 (mm) |
| Maximum Dc Current (A) | 4 (A) |
| Length | 7 (mm) |
| Core Material | Ferrite |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Operating Temperature | +125 (°C) |
| Automotive Standard | AEC-Q200 |
| Package/Case | 70V |
No issues have been reported for the ACM70V-701-2PL-TL00
