ACPL-064L-060E
Logic Output Optoisolator 10MBd Push-Pull, Totem Pole 3750Vrms 2 Channel 20kV/µs CMTI 8-SO Tall
Availability: Out of Stock
Package Type: SO-8
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ACPL-064L-060E by Broadcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

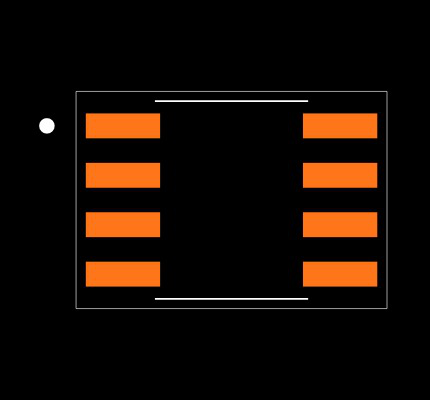

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ACPL-064L-060E
| Part Name | ACPL-064L-060E |
| Manufacturer | Broadcom Limited |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Forward Voltage (V) | 1.7 (V) |
| Output Device | Logic Gate |
| Input Current Type (A) | DC |
| Mounting Type | Surface Mount |
| Series | ACPL |
| Number Of Channels | 2 |
| Typical Rise Time | 0.012 (µs) |
| Isolation Voltage (V) | 3750 V ac |
| Package Type | SOIC |
| Number Of Pins | 8 |
| Maximum Input Current (A) | 8 mA |
| Logic Output | Yes |
| Typical Fall Time | 0.012 (µs) |
