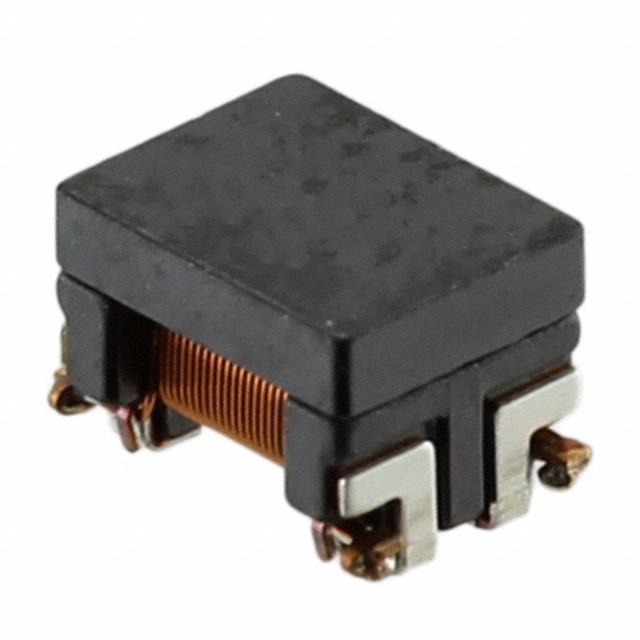

ACT1210-510-2P-TL00
51 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 2.6 kOhms @ 10 MHz 200mA DCR 700mOhm
Availability: In Stock
Package Type: HORIZONTAL-4
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ACT1210-510-2P-TL00 by TDK Corporation and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ACT1210-510-2P-TL00
| Part Name | ACT1210-510-2P-TL00 |
| Manufacturer | TDK |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Lines | 2 |
| Dimensions | 3.9 x 2.5 x 2.5 (mm) |
| Maximum Current (A) | 200 mA |
| Voltage Rating (V) | 80 (V) |
| Package Case | 1210 (3225M) |
| Series | ACT |
| Operating Temperature Range | -55°C → +150°C |
| Termination Style | Surface Mount |
| Depth | 2.5 (mm) |
| Height | 2.5 (mm) |
| Test Frequency | 10 MHz |
| Length | 3.9 (mm) |
| Mounting Type | Surface Mount |
| Inductance | 51 μH |
| Impedance | 2600 Ω |
| Maximum Operating Temperature | +150 (°C) |
| Minimum Operating Temperature | -55 (°C) |
| Dc Resistance | 0.7 (Ω) |
