AD1852JRSZRL
The AD1852 is a complete 18/20/24-bit single-chip stereo digital audio playback system. It is comprised of a multibit sigma-delta modulator, digital interpolation filters, and analog output drive circuitry. Other features include an on-chip stereo attenuator and mute, programmed through an SPI-compatible serial control port. The AD1852 is fully compatible with all known DVD formats including 192kHz as well as 96kHz sample frequencies and 24-bits. It also is backwards compatible by supporting 50/15µs digital de-emphasis intended for "redbook" Compact Discs, as well as de-emphasis at 32kHz and 48kHz sample rate.
Availability: Out of Stock
Package Type: SSOP-28
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD1852JRSZRL by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

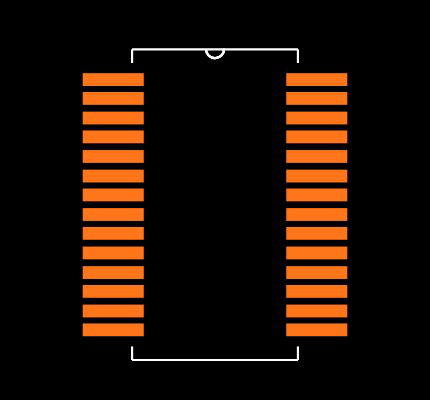

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD1852JRSZRL
| Part Name | AD1852JRSZRL |
| Manufacturer | Analog Devices |
| Product Category | Audio D/A Converters |
| Package | SSOP 5.3 MM |
| MOQ | 0 |
| RoHS value | Yes |
| Part Launch Date | 11/15/2005 5:53:20 AM |
| Temperature Range | 0 to 70C |
| Product Link | https://www.analog.com/en/products/ad1852.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 28 |
| Product Lifecycle | Production |
| RoHS | Yes |
| Life Cycle Status | Restricted Availability |
