AD215AY
120 kHz Bandwidth, Low Distortion, Isolation Amplifier
Availability: Out of Stock
Package Type: SIP-12
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD215AY by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

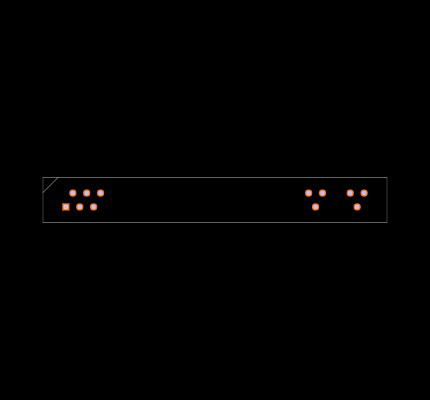

Footprint
No web preview
This Footprint is Available for

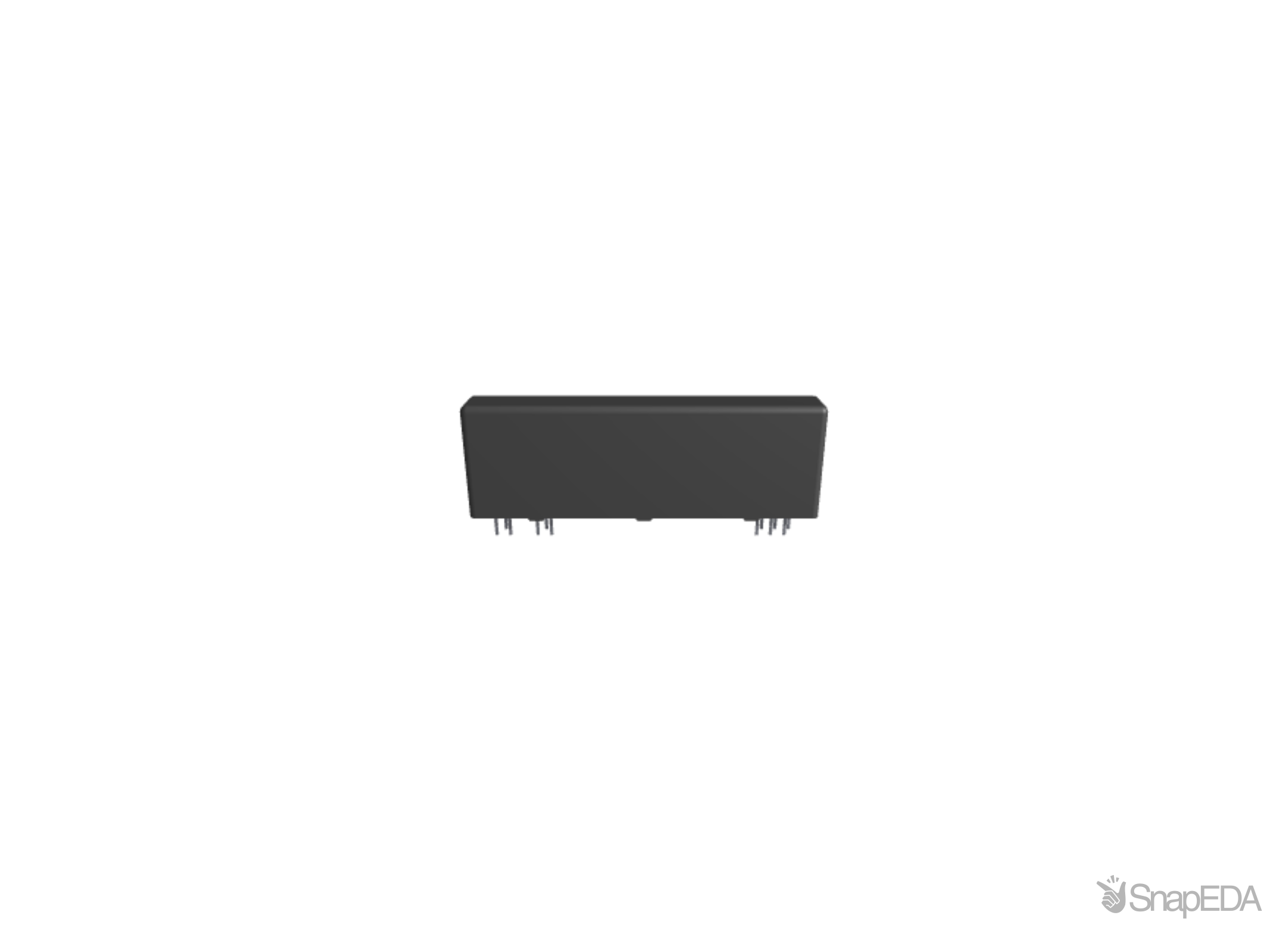

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD215AY
| Part Name | AD215AY |
| Manufacturer | Analog Devices |
| Product Category | Isolation Amplifiers |
| Package | SINGLE IN-LINE PACKAGE |
| MOQ | 1 |
| RoHS value | No |
| Part Launch Date | 5/7/2004 4:53:20 AM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/ad215.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 12 |
| Product Lifecycle | Production |
| RoHS | No |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Typical Dual Supply Voltage (V) | ±15 (V) |
| Dimensions | 21.4 x 63 x 8.3 (mm) |
| Mounting Type | Through Hole |
| Power Supply Type | Dual |
| Number Of Channels Per Chip | 1 |
| Pin Count | 12 |
| Width | 8.3 (mm) |
| Length | 63 (mm) |
| Package Type | SIP |
| Minimum Operating Temperature | -40 °C |
| Height | 21.4 (mm) |
| Maximum Operating Temperature | +85 °C |
| Maximum Voltage Gain (V) | 20 (dB) |
Inventory for the AD215AY by Analog Devices from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
|
|
Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the AD215AY
If you experienced any issues with the symbol or footprint, please report it.
