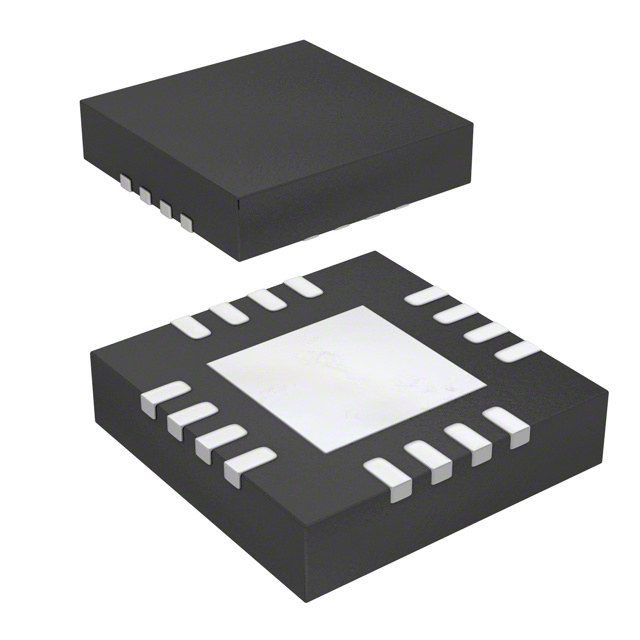

AD4680BCPZ-RL7
Differential Inputs, 1 MSPS, Dual Simultaneous Sampling SAR ADCs
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD4680BCPZ-RL7 by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD4680BCPZ-RL7
| Part Name | AD4680BCPZ-RL7 |
| Manufacturer | Analog Devices |
| Product Category | Simultaneous Sampling A/D Converters |
| Package | LFCSP:LEADFRM CHIP SCALE |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 11/3/2020 1:56:00 PM |
| Temperature Range | -40 to 125C |
| Product Link | https://www.analog.com/en/products/ad4680.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 16 |
| Product Lifecycle | Production |
| RoHS | Yes |
