AD5755ACPZ
Quad Channel, 16-Bit, Serial Input,4 mA to 20 mA and Voltage Output DAC, Dynamic Power Control
Availability: In Stock
Package Type: LFCSP -64
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD5755ACPZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

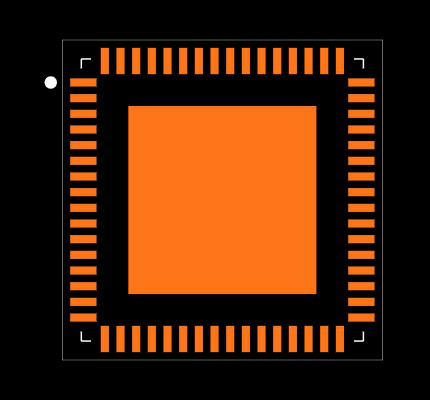

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD5755ACPZ
| Part Name | AD5755ACPZ |
| Manufacturer | Analog Devices |
| Product Category | 4-20mA Current Loop D/A Converters |
| Package | LFCSP:LEADFRM CHIP SCALE |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 7/2/2010 4:53:20 AM |
| Pins | 64 |
| Product Link | https://www.analog.com/en/products/ad5755.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 105C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Polarity | Bipolar, Unipolar |
| Integral Nonlinearity Error | ±1 (LSB) |
| Dimensions | 9.1 x 9.1 x 0.8 (mm) |
| Mounting Type | Surface Mount |
| Number Of Dac Channels | 1 |
| Power Supply Type | Dual, Single |
| Maximum Settling Time | 18 (µs) |
| Resolution | 16 bit |
| Pin Count | 64 |
| Typical Single Supply Voltage (V) | 0 → 10 V, 0 → 5 V |
| Full Scale Error | ±0.03 (%FSR) |
| Package Type | LFCSP VQ |
| Architecture | R-2R |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +105 °C |
| Voltage Reference (V) | External, Internal |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
