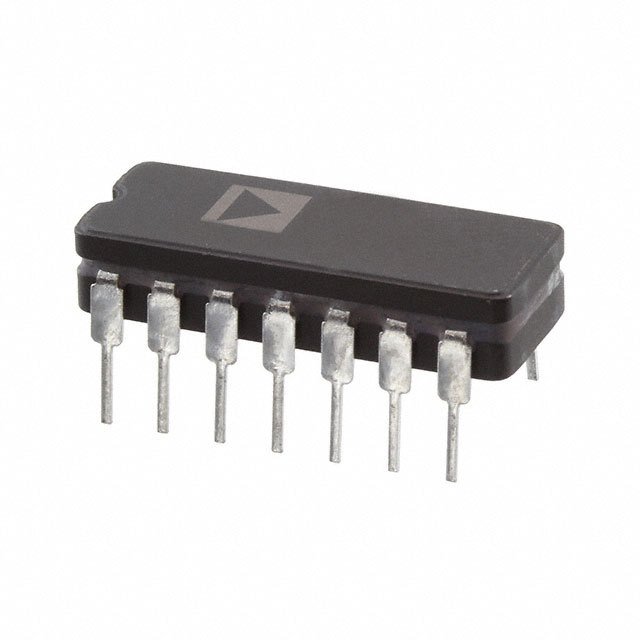

AD594AQ
Type J Thermocouple Amplifier with Cold Junction Compensation
Availability: Out of Stock
Package Type: CERDIP-14
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD594AQ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD594AQ
| Part Name | AD594AQ |
| Manufacturer | Analog Devices |
| RoHS | True |
| Life Cycle Status | Restricted Availability |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Typical Dual Supply Voltage (V) | ±15 (V) |
| Typical Gain Bandwidth Product | 15 (kHz) |
| Dimensions | 19.55 x 6.6 x 3.76 (mm) |
| Mounting Type | Through Hole |
| Power Supply Type | Dual, Single |
| Length | 19.55 (mm) |
| Height | 3.76 (mm) |
| Width | 6.6 (mm) |
| Typical Single Supply Voltage (V) | 5 V |
| Package Type | CDIP |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 14 |
No issues have been reported for the AD594AQ
