AD7302BRUZ
2.7 V to 5.5 V, Parallel Input Dual Voltage Output 8-Bit DAC
Availability: In Stock
Package Type: TSSOP-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD7302BRUZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

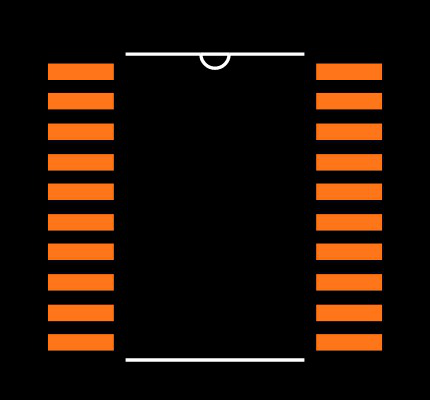

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD7302BRUZ
| Part Name | AD7302BRUZ |
| Manufacturer | Analog Devices |
| Product Category | Multichannel Voltage Output D/A Converters |
| Package | TSSOP 4.4 MM |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 7/1/2004 4:53:20 AM |
| Temperature Range | -40 to 105C |
| Product Link | https://www.analog.com/en/products/ad7302.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 2 |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Polarity | Unipolar |
| Conversion Rate | 833 (ksps) |
| Integral Nonlinearity Error | ±1 (LSB) |
| Dimensions | 6.5 x 4.4 x 1.05 (mm) |
| Mounting Type | Surface Mount |
| Number Of Dac Channels | 2 |
| Power Supply Type | Single |
| Resolution | 8 bit |
| Pin Count | 20 |
| Typical Single Supply Voltage (V) | 3.3 V, 5 V |
| Full Scale Error | -0.75 (LSB) |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40 °C |
| Voltage Reference (V) | External, Internal |
| Maximum Operating Temperature | 105 °C |
| Maximum Settling Time | 2 (µs) |
| Digital Interface Type | Parallel |
Inventory for the AD7302BRUZ by Analog Devices from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
61
|
|
Visit Site | |
|
★ Featured
|
7,490
|
133 x $2.26
|
Visit Site | |
| Analog Devices |
1,361
|
|
Visit Site | |
| Chip One Stop |
45
|
|
Visit Site | |
| Farnell UK |
4
|
|
Visit Site | |
| Newark |
4
|
|
Visit Site | |
| Richardson RFPD |
|
75 x $6.69
|
Visit Site | |
| Verical |
5,400
|
75 x $6.25
|
Visit Site | |
| element14 Singapore |
4
|
|
Visit Site |
No issues have been reported for the AD7302BRUZ
