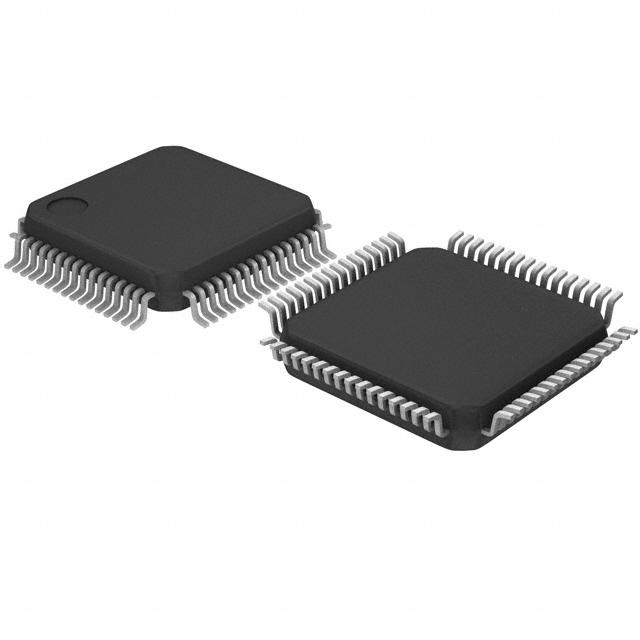

AD7606BSTZ
8-Channel DAS with 16-Bit, Bipolar Input, Simultaneous Sampling ADC
Availability: In Stock
Package Type: LQFP -64
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD7606BSTZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD7606BSTZ
| Part Name | AD7606BSTZ |
| Manufacturer | Analog Devices |
| Product Category | Simultaneous Sampling A/D Converters |
| Package | LQFP 1.4 MM |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 2/23/2009 5:53:20 AM |
| Pins | 64 |
| Product Link | https://www.analog.com/en/products/ad7606.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 85C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Adcs | 8 |
| Integral Nonlinearity Error | ±2 (LSB) |
| Maximum Operating Temperature | 85 °C |
| Dimensions | 10.2 x 10.2 x 1.45 (mm) |
| Mounting Type | Surface Mount |
| Power Supply Type | Single |
| Pin Count | 64 |
| Input Signal Type | Single Ended |
| Typical Single Supply Voltage (V) | 5 V |
| Package Type | LQFP |
| Architecture | SAR |
| Minimum Operating Temperature | -40 °C |
| Sampling Rate | 200 (ksps) |
| Input Type | Voltage |
| Resolution | 16-bit |
| Digital Interface Type | Parallel, Serial |
Inventory for the AD7606BSTZ by Analog Devices from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
854
|
|
Visit Site | |
|
★ Featured
|
11,410
|
21 x $14.47
|
Visit Site | |
| Arrow Asia |
16,424
|
|
Visit Site | |
| Verical |
1,926
|
|
Visit Site |
No issues have been reported for the AD7606BSTZ
