AD8032ANZ
2.7 V, 800 µA, 80 MHz Rail-to-Rail I/O Dual Amplifier
Availability: Out of Stock
Package Type: PDIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD8032ANZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates

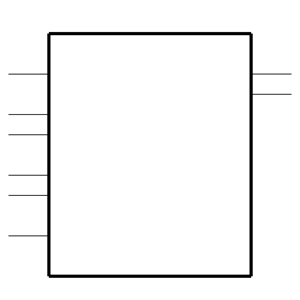

Symbol
No web preview
This Symbol is Available for

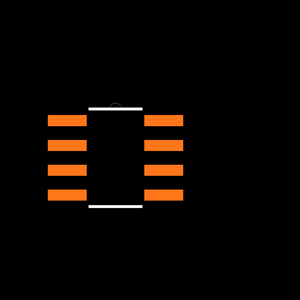

Footprint
No web preview
This Footprint is Available for

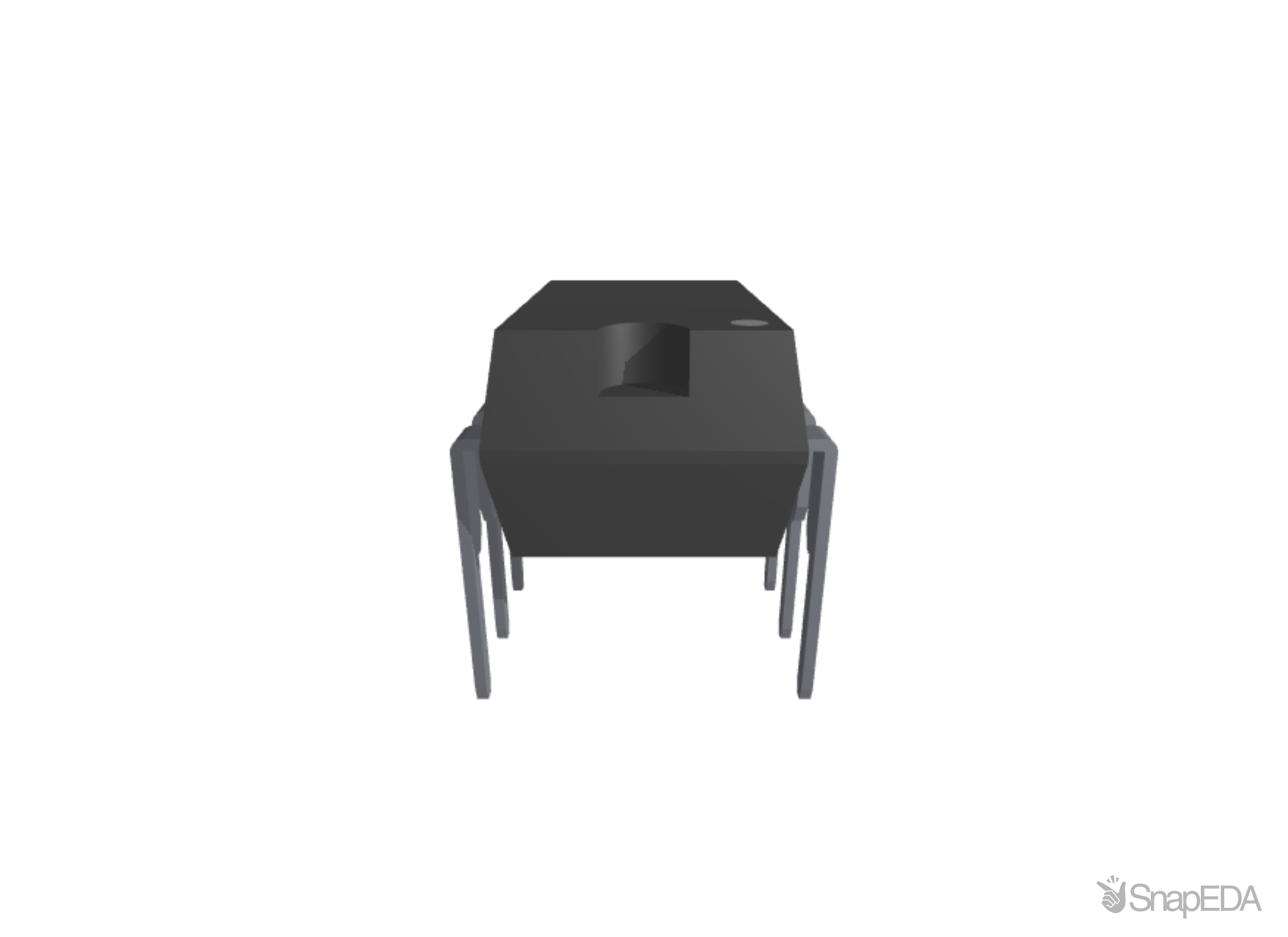

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD8032ANZ
| Part Name | AD8032ANZ |
| Manufacturer | Analog Devices |
| Product Category | Low Power Op Amps (≤ 1mA/amp) |
| Package | PLASTIC DIP |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 9/28/2006 4:53:20 AM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/ad8032.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 8 |
| Product Lifecycle | Production |
| RoHS | Y |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Rail To Rail | Rail to Rail Input/Output |
| Typical Dual Supply Voltage (V) | ±5 (V) |
| Typical Input Voltage Noise Density (V) | 15 (nV/√Hz) |
| Dimensions | 9.27 x 7.24 x 3.43 (mm) |
| Mounting Type | Through Hole |
| Typical Slew Rate | 32 (V/µs) |
| Power Supply Type | Dual, Single |
| Number Of Channels Per Chip | 2 |
| Length | 9.27 (mm) |
| Height | 3.43 (mm) |
| Width | 7.24 (mm) |
| Typical Single Supply Voltage (V) | 5 V |
| Package Type | PDIP |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Low Power |
| Typical Voltage Gain (V) | 82 dB |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
No issues have been reported for the AD8032ANZ
