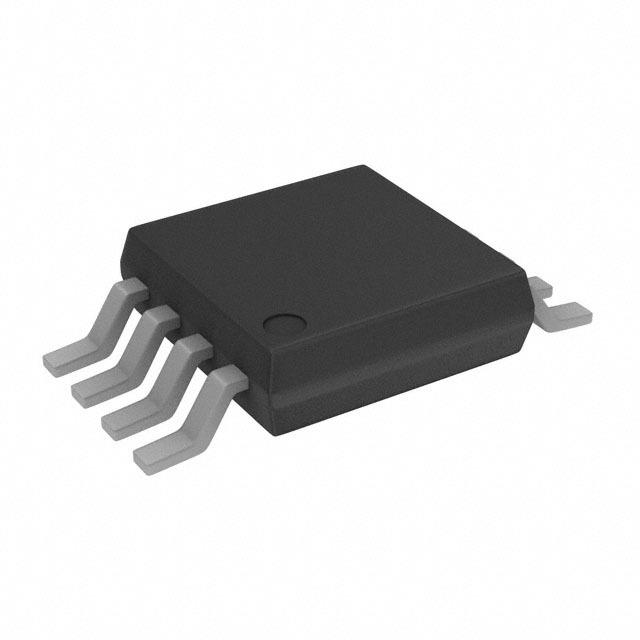

AD8313ARMZ
0.1 GHz TO 2.5 GHz, 70 dB Logarithmic Detector / Controller
Availability: Out of Stock
Package Type: MSOP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD8313ARMZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD8313ARMZ
| Part Name | AD8313ARMZ |
| Manufacturer | Analog Devices |
| Product Category | Logarithmic Detectors |
| Package | MICRO SOIC |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 10/6/2006 4:53:20 AM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/ad8313.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 8 |
| Product Lifecycle | Production |
| RoHS | Y |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Rail To Rail | Rail to Rail Output |
| Dimensions | 3 x 3 x 0.85 (mm) |
| Mounting Type | Surface Mount |
| Maximum Input Resistance | 0.001 (MΩ) |
| Power Supply Type | Single |
| Length | 3 (mm) |
| Output Type | Rail to Rail |
| Height | 0.85 (mm) |
| Width | 3 (mm) |
| Typical Single Supply Voltage (V) | 3 V, 5 V |
| Package Type | MSOP |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
No issues have been reported for the AD8313ARMZ
