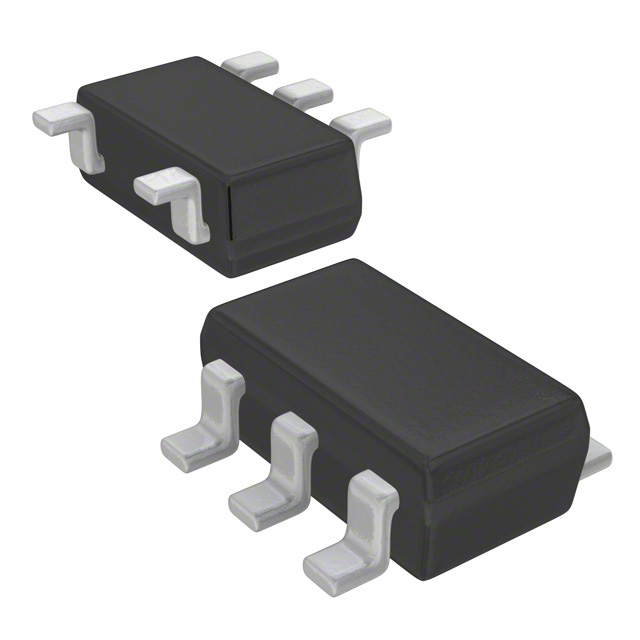

AD8541ARTZ-REEL
General-Purpose CMOS Single Rail-to-Rail Amplifier
Availability: Out of Stock
Package Type: SOT-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD8541ARTZ-REEL by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

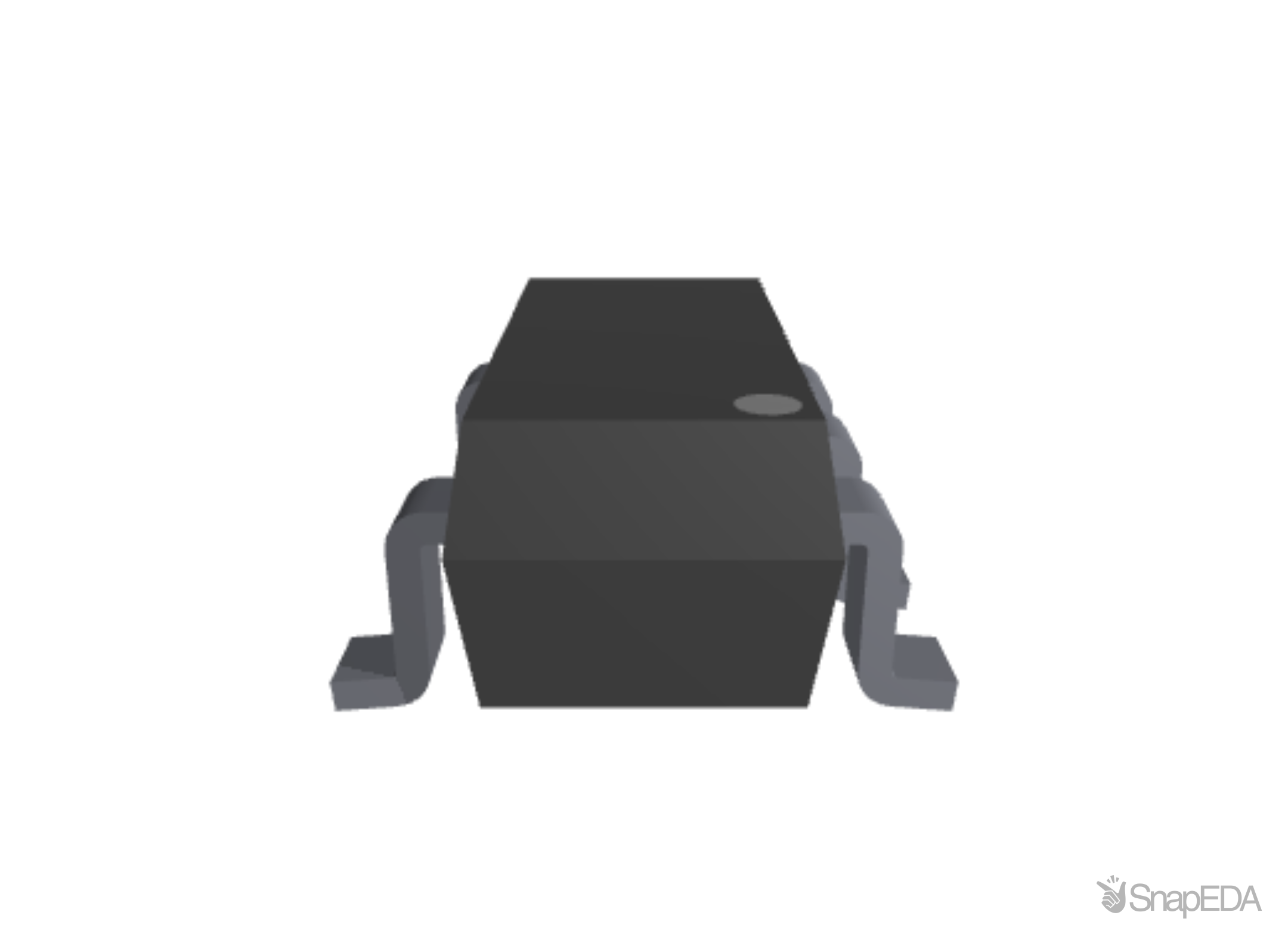

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD8541ARTZ-REEL
| Part Name | AD8541ARTZ-REEL |
| Manufacturer | Analog Devices |
| Product Category | Low Input Bias Current Op Amps (≤100 pA) |
| Package | SOT23 5/6/8 Leads |
| MOQ | 0 |
| RoHS value | Yes |
| Part Launch Date | 1/11/2007 5:53:20 AM |
| Pins | 5 |
| Product Link | https://www.analog.com/en/products/ad8541.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 125C |
| Product Lifecycle | Production |
| RoHS | Y |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Dimensions | 3 x 1.7 x 1.3 (mm) |
| Typical Slew Rate | 0.92 (V/µs) |
| Typical Gain Bandwidth Product | 1 (MHz) |
| Width | 1.7 (mm) |
| Input Offset Current (A) | 500 (pA) |
| Power Supply Type | Single |
| Rail To Rail | Rail to Rail Input/Output |
| Package Type | SOT-23 |
| Typical Voltage Gain (V) | 114 dB |
| Maximum Operating Temperature | +125 °C |
| Length | 3 (mm) |
| Pin Count | 5 |
| Offset Voltage (V) | 7 (mV) |
| Typical Input Voltage Noise Density (V) | 42 (nV/√Hz) |
| Mounting Type | Surface Mount |
| Output Current (A) | 30 mA |
| Input Voltage Range (V) | 2.7 → 5.5 V |
| Number Of Channels Per Chip | 1 |
| Height | 1.3 (mm) |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | CMOS |
| Maximum Input Voltage (V) | 5.5 V |
| Minimum Input Voltage (V) | 2.7 V |
No issues have been reported for the AD8541ARTZ-REEL
