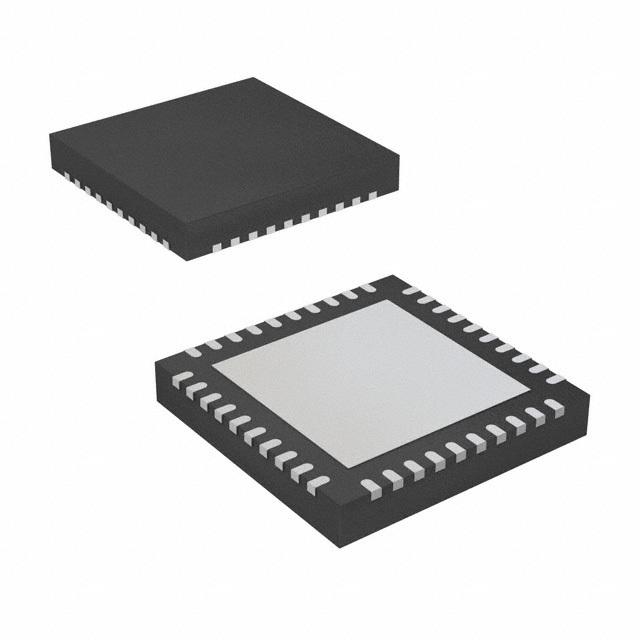

AD9115BCPZ
Dual Low Power, 10-Bit TxDAC Digital-to-Analog Converters
Availability: In Stock
Package Type: LFCSP -40
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD9115BCPZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD9115BCPZ
| Part Name | AD9115BCPZ |
| Manufacturer | Analog Devices |
| Product Category | Standard High Speed D/A Converters |
| Package | LFCSP:LEADFRM CHIP SCALE |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 8/26/2008 4:53:20 AM |
| Pins | 4 |
| Product Link | https://www.analog.com/en/products/ad9115.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 85C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Conversion Rate | 125 (Msps) |
| Integral Nonlinearity Error | ±0.07 (Postcalibration) LSB, ±0.19 (Precalibration) LSB |
| Dimensions | 6.1 x 5.85 x 0.95 (mm) |
| Mounting Type | Surface Mount |
| Number Of Dac Channels | 2 |
| Power Supply Type | Single |
| Resolution | 10 bit |
| Pin Count | 40 |
| Typical Single Supply Voltage (V) | 1.8 → 3.3 V |
| Full Scale Error | -2 → +2 (%FSR) |
| Package Type | LFCSP |
| Architecture | Segmented |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Settling Time | 11.5 (ns) |
| Digital Interface Type | Parallel, Serial |
