AD9215BCPZ-105
10-Bit, 65/80/105 MSPS 3 V A/D Converter
Availability: Out of Stock
Package Type: LFCSP -32
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD9215BCPZ-105 by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

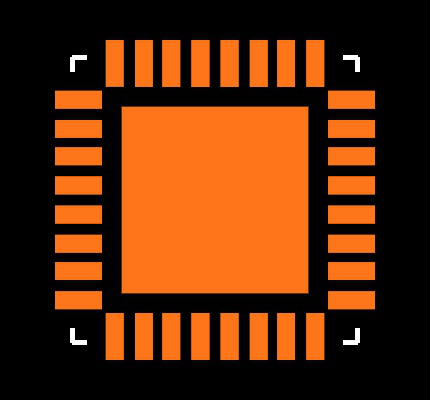

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD9215BCPZ-105
| Part Name | AD9215BCPZ-105 |
| Manufacturer | Analog Devices |
| Product Category | Standard High Speed A/D Converters |
| Package | LFCSP:LEADFRM CHIP SCALE |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 10/25/2007 4:53:20 AM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/ad9215.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 32 |
| Product Lifecycle | Production |
| RoHS | Y |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Number Of Adcs | 1 |
| Integral Nonlinearity Error | ±1.2 (LSB) |
| Dimensions | 5 x 5 x 0.83 (mm) |
| Mounting Type | Surface Mount |
| Resolution | 10-bit |
| Digital Interface Type | Parallel |
| Input Signal Type | Differential, Single Ended |
| Typical Single Supply Voltage (V) | 3 V |
| Package Type | LFCSP |
| Architecture | Pipelined |
| Minimum Operating Temperature | -40 °C |
| Sampling Rate | 105000 (ksps) |
| Input Type | Voltage |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 32 |
No issues have been reported for the AD9215BCPZ-105
If you experienced any issues with the symbol or footprint, please report it.
