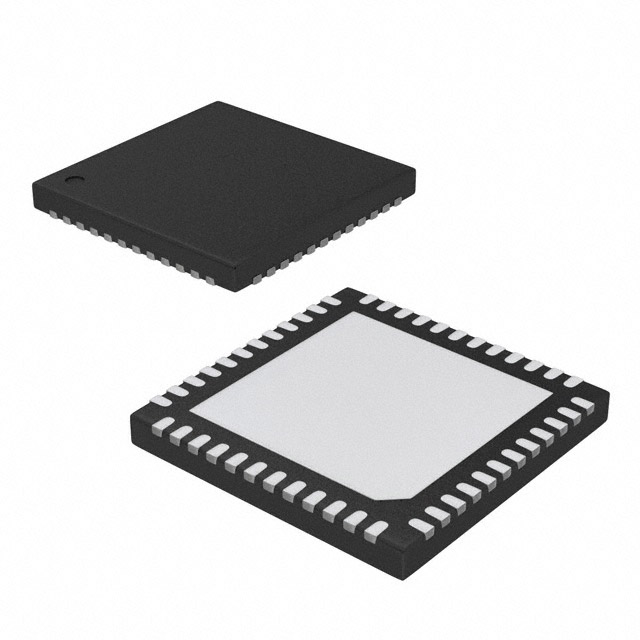

AD9518-4ABCPZ
6-Output Clock Generator with Integrated 1.6 GHz VCO
Availability: Out of Stock
Package Type: LFCSP -48
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD9518-4ABCPZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD9518-4ABCPZ
| Part Name | AD9518-4ABCPZ |
| Manufacturer | Analog Devices |
| Product Category | Clock Generation Devices |
| Package | LFCSP:LEADFRM CHIP SCALE |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 3/12/2008 4:53:20 AM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/ad9518-4.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 48 |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 7.1 x 7.1 x 0.95 (mm) |
| Maximum Operating Supply Voltage (V) | 3.465 V |
| Maximum Output Frequency | 1.6 (GHz) |
| Minimum Operating Supply Voltage (V) | 3.135 V |
| Height | 0.95 (mm) |
| Width | 7.1 (mm) |
| Length | 7.1 (mm) |
| Package Type | LFCSP VQ |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 48 |
No issues have been reported for the AD9518-4ABCPZ
