AD9833BRMZ-REEL
Low Power, 12.65 mW, 2.3 V to 5.5 V, Programmable Waveform Generator
Availability: In Stock
Package Type: MSOP-10
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AD9833BRMZ-REEL by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

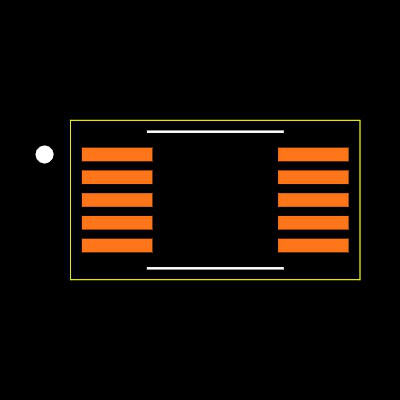

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AD9833BRMZ-REEL
| Part Name | AD9833BRMZ-REEL |
| Manufacturer | Analog Devices |
| Product Category | Direct Digital Synthesis (DDS) |
| Package | MICRO SOIC |
| MOQ | 3000 |
| RoHS value | Yes |
| Part Launch Date | 1/16/2006 5:53:20 AM |
| Pins | 1 |
| Product Link | https://www.analog.com/en/products/ad9833.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 105C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Category | Digital Synthesiser |
| Conversion Rate | 25 (Msps) |
| Mounting Type | Surface Mount |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Maximum Output Frequency | 12.5 (MHz) |
| Package Type | MSOP |
| Resolution | 28 bit |
| Pin Count | 10 |
