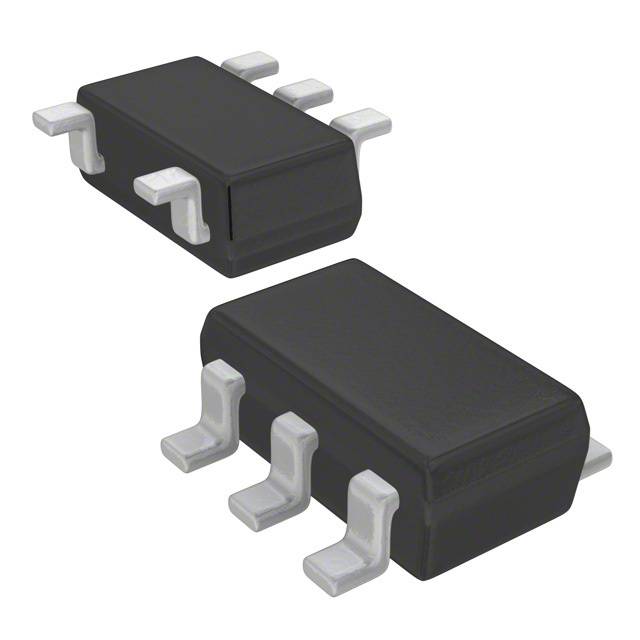

ADA4505-1ARJZ-R7
10µA, RRIO, Zero Input Crossover Distortion Single Op Amp
Availability: Out of Stock
Package Type: SOT-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADA4505-1ARJZ-R7 by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates

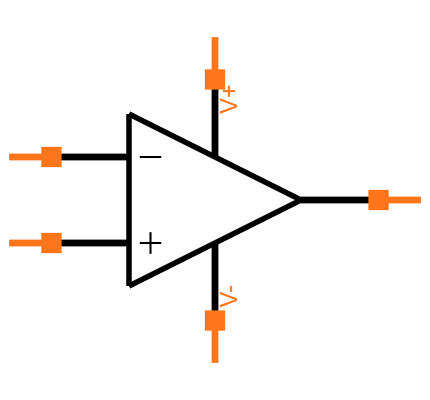

Symbol
No web preview
This Symbol is Available for

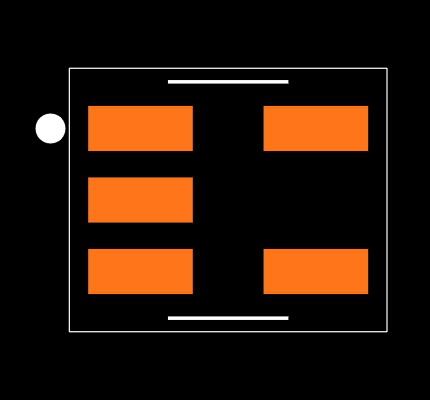

Footprint
No web preview
This Footprint is Available for

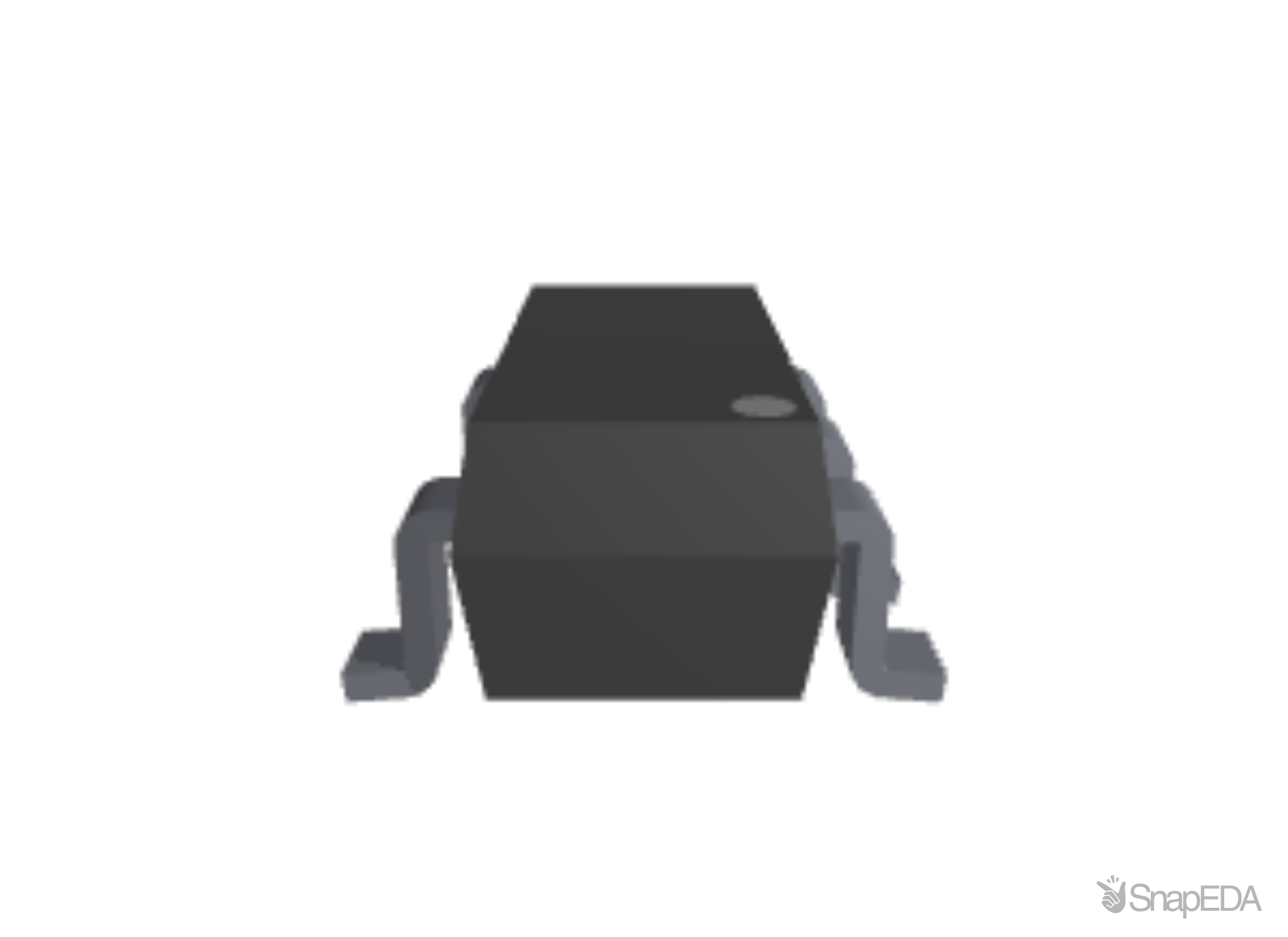

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADA4505-1ARJZ-R7
| Part Name | ADA4505-1ARJZ-R7 |
| Manufacturer | Analog Devices |
| Product Category | Low Input Bias Current Op Amps (≤100 pA) |
| Package | SOT23 5/6/8 Leads |
| MOQ | 3000 |
| RoHS value | Yes |
| Part Launch Date | 7/8/2009 4:53:20 AM |
| Temperature Range | -40 to 125C |
| Product Link | https://www.analog.com/en/products/ada4505-1.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 5 |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the ADA4505-1ARJZ-R7
If you experienced any issues with the symbol or footprint, please report it.
