ADA4638-1ARZ
30V Auto-zero, Rail-to-Rail Output Precision Amplifier
Availability: In Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADA4638-1ARZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

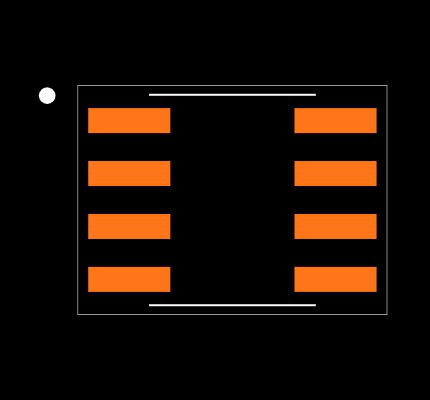

Footprint
No web preview
This Footprint is Available for

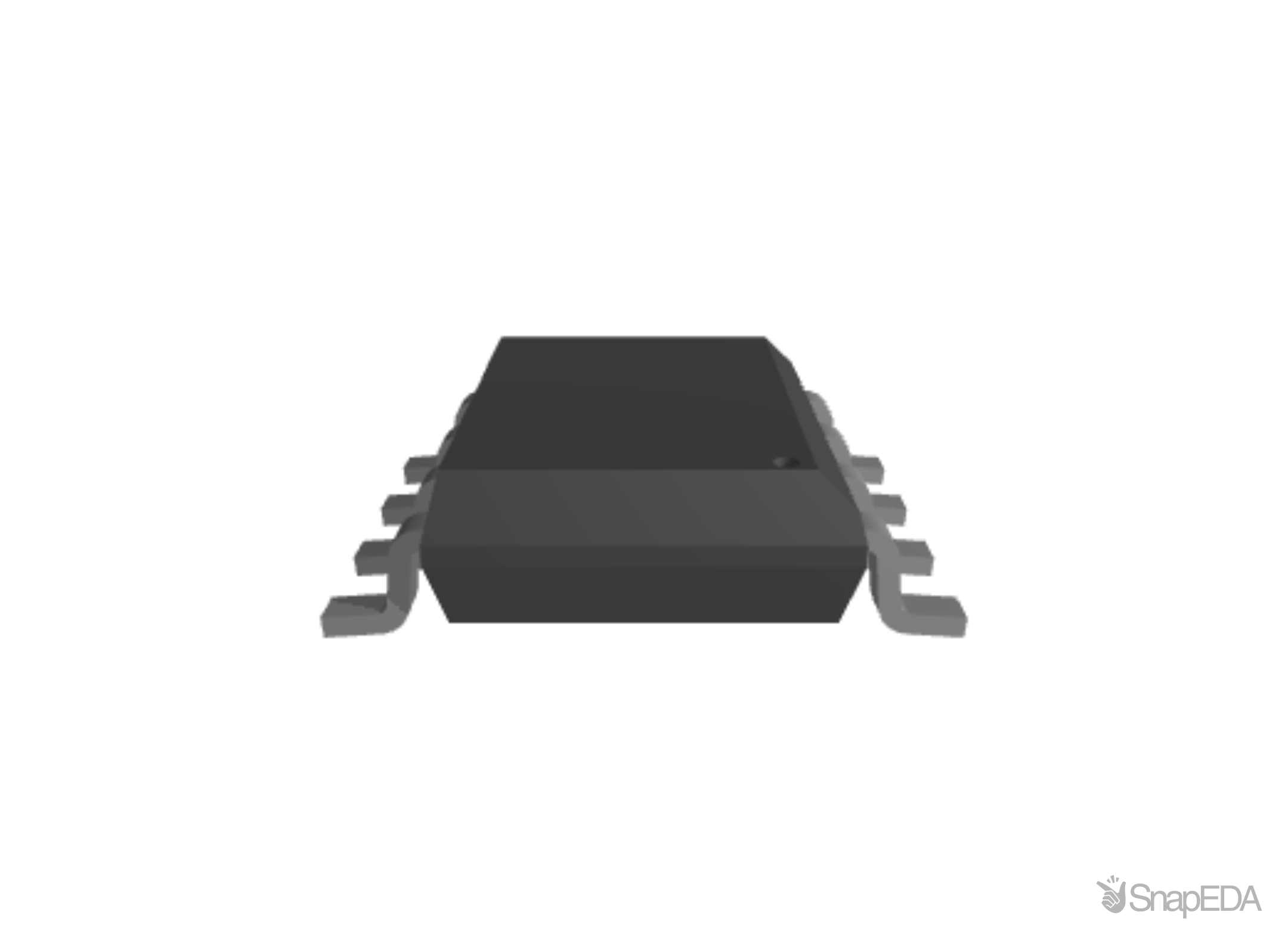

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADA4638-1ARZ
| Part Name | ADA4638-1ARZ |
| Manufacturer | Analog Devices |
| Product Category | Zero-Drift Op Amps |
| Package | SOIC 150 MIL |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 6/29/2011 4:53:20 AM |
| Pins | 8 |
| Product Link | https://www.analog.com/en/products/ada4638-1.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 125C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Voltage Gain (V) | 165 dB |
| Typical Dual Supply Voltage (V) | ±2.5 → ±15 (V) |
| Typical Input Voltage Noise Density (V) | 66 (nV/√Hz) |
| Dimensions | 5 x 4 x 1.5 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 1.5 (V/µs) |
| Power Supply Type | Dual |
| Number Of Channels Per Chip | 1 |
| Rail To Rail | Rail to Rail Output |
| Maximum Operating Frequency | 1 MHz |
| Typical Gain Bandwidth Product | 1.5 (MHz) |
| Typical Single Supply Voltage (V) | 4.5 → 30 V |
| Width | 4 (mm) |
| Length | 5 (mm) |
| Package Type | SOIC |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Precision |
| Height | 1.5 (mm) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 8 |
Inventory for the ADA4638-1ARZ by Analog Devices from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,102
|
|
Visit Site | |
|
★ Featured
|
43,518
|
124 x $2.43
|
Visit Site | |
| Analog Devices |
6,497
|
|
Visit Site | |
| Chip One Stop |
153
|
1 x $1.99
|
Visit Site | |
| Farnell UK |
257
|
|
Visit Site | |
| Newark |
257
|
|
Visit Site | |
| Richardson RFPD |
|
98 x $2.31
|
Visit Site | |
| Verical |
18
|
3 x $2.38
|
Visit Site | |
| element14 Singapore |
257
|
|
Visit Site |
No issues have been reported for the ADA4638-1ARZ
If you experienced any issues with the symbol or footprint, please report it.
