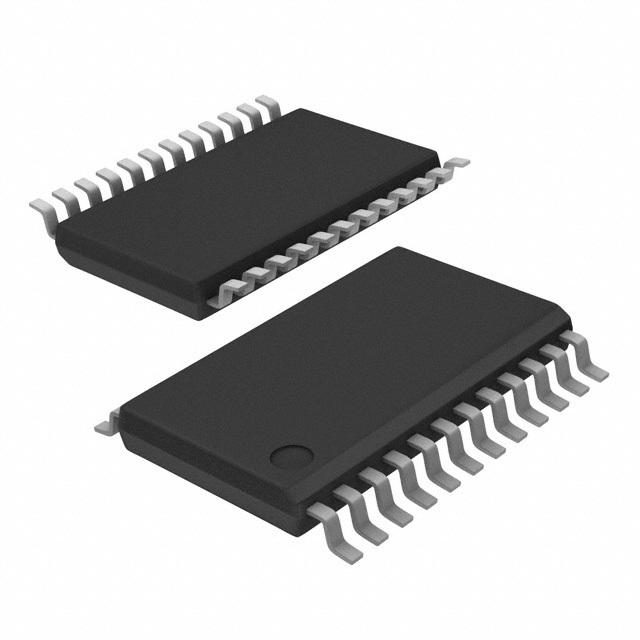

ADC08200CIMT/NOPB
8-Bit 200MSPS Low-Power Analog-to-Digital Converter (ADC) With Internal Sample and Hold
Availability: In Stock
Package Type: TSSOP-24
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADC08200CIMT/NOPB by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

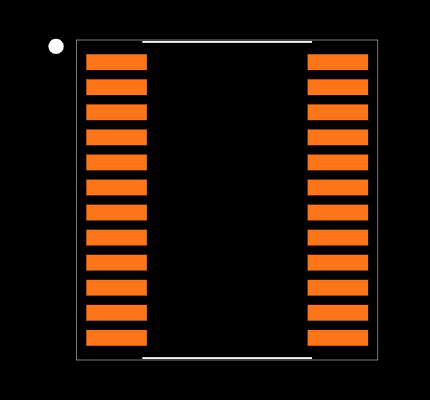

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADC08200CIMT/NOPB
| Part Name | ADC08200CIMT/NOPB |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Adcs | 1 |
| Integral Nonlinearity Error | -1.2/1.9 (LSB) |
| Dimensions | 7.8 x 4.4 x 0.9 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | 105 °C |
| Pin Count | 24 |
| Input Signal Type | Single Ended |
| Typical Single Supply Voltage (V) | 3 V |
| Package Type | TSSOP |
| Architecture | Pipelined |
| Minimum Operating Temperature | -40 °C |
| Sampling Rate | 200000 (ksps) |
| Input Type | Voltage |
| Resolution | 8-bit |
| Digital Interface Type | Parallel |
Inventory for the ADC08200CIMT/NOPB by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
27
|
|
Visit Site | |
|
★ Featured
|
82
|
|
Visit Site | |
|
★ Featured
|
11,730
|
35 x $8.68
|
Visit Site | |
| Texas Instruments |
28,184
|
|
Visit Site |
No issues have been reported for the ADC08200CIMT/NOPB
